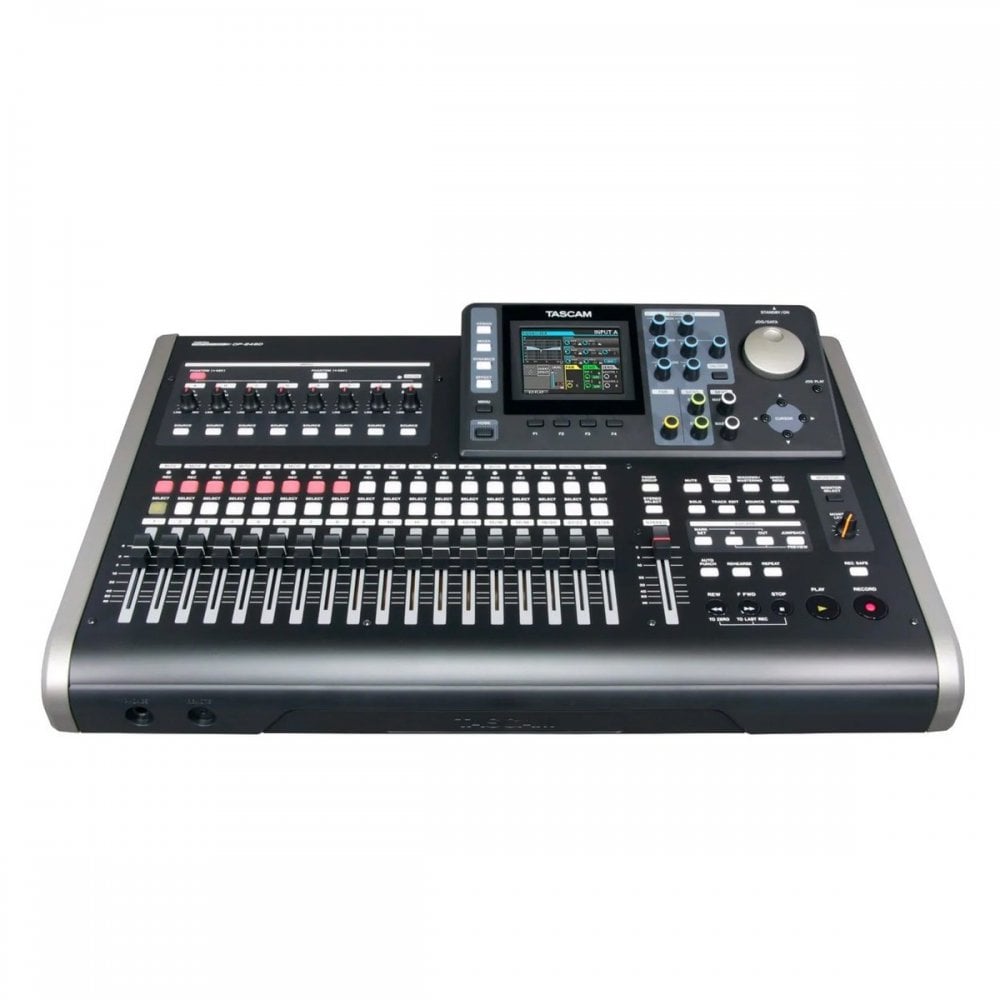

The DP-24SD is a 24-track Digital Portastudio with solid-state recording, a colour LCD and channel strip controls to make recording simple so you stay creative. Up to eight tracks can be recorded at a time through its combination XLR and 6.3-mm combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input.
Once recorded, tracks can be viewed on the large display and mixed with dedicated mixing controls like nineteen linear faders and a dozen channel strip encoders. Two mixdown effects including reverb and chorus are also available, as well as a mastering effect. Once finished, songs can be transferred to computer over USB for further processing or sharing with other people.
Main Features
- 24-track digital Portastudio
- 12 mono tracks + 6 stereo tracks, 19 faders
- Simultaneous playback of 24 tracks
- Simultaneous recording of 8 tracks
- 44.1 kHz or 48 kHz sampling rate, 16 bit or 24 bit resolution
- 8 XLR/TRS combo connectors for inputs
- Phantom power supplied on all inputs (switchable A–D, E–H)
- Instrument-level input for direct recording of guitar or bass
- Inputs A–H and each track equipped with 3-band EQ
- Colour LC display and 12-encoder channel strip for simple operation
- Dedicated controls for EQ, pan and effect sends
- Peak-hold function for level meters on display
- Stereo RCA output
- 2 effect send outputs (6.3-mm TS jack)
- Headphones output with 70 mW per channel
- Remote connector for optional RC-3F footswitch to enable hands-free control of several functions
- Automatic punch in/out
- Track bounce function
- 8 virtual tracks per track for alternative takes
- Up to 99 locate marks per song
- Various edit functions (copy insert, copy paste, move insert, move paste, open, cut, silence, clone track, clean out)
- Editing on sub-frame level
- Undo and Redo function with undo history
- Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
- Guitar multi-effects (Noise Suppression, Amp Simulation, Compression, Chorus, Flanger, Phaser, Tremolo, Auto Wah, Delay)
- Mix-down effects (Reverb, Delay, Stereo Chorus)
- Mastering tools (Equalizer, Multi-band Compressor, Normalizer)
- Chromatic tuner
- Metronome
- File transfer via USB 2.0
- Dedicated AC adapter included (GPE248-120200-Z)
- Solid-state recording to SD cards for better shock resistance than hard drive recording
- SD card included
