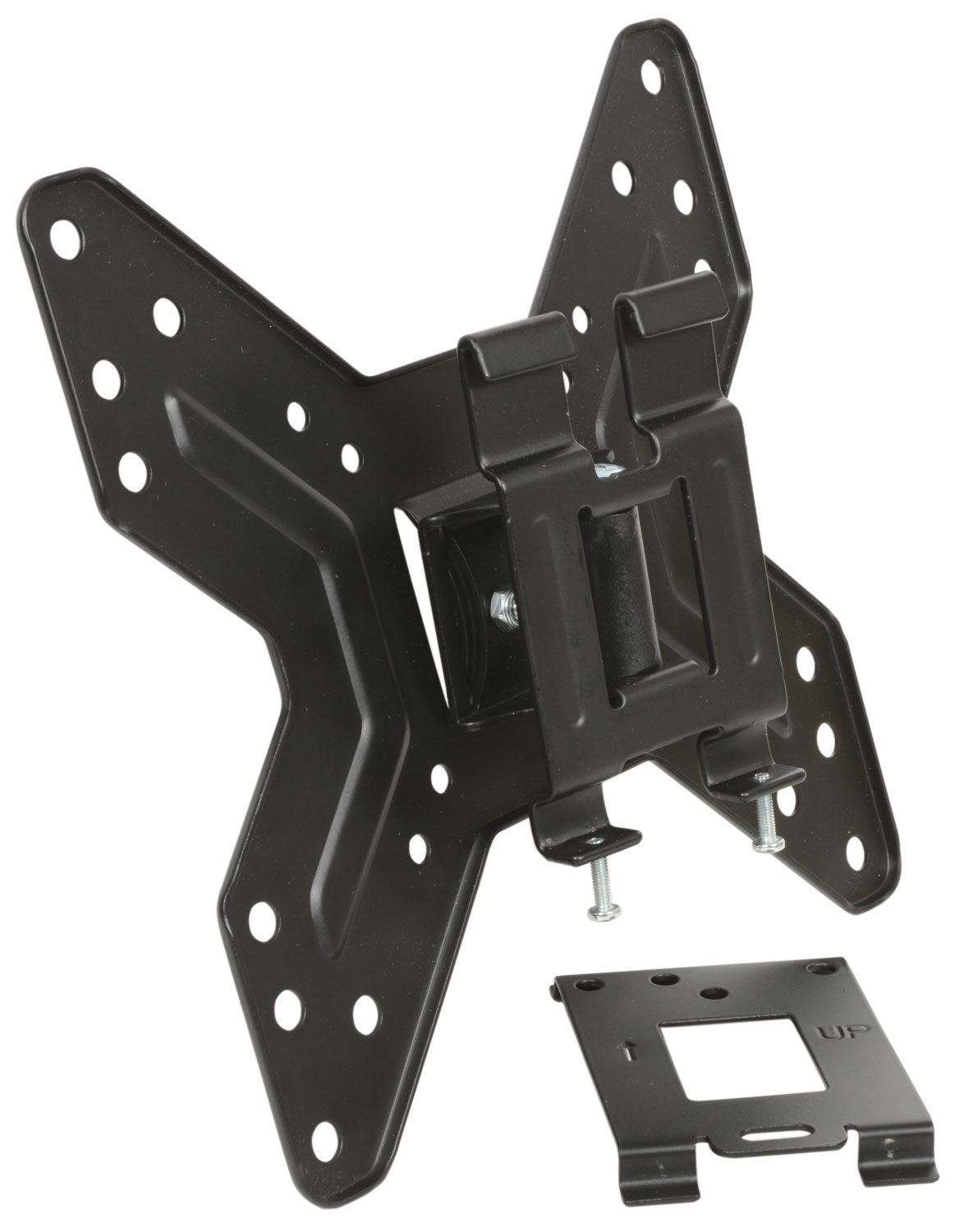

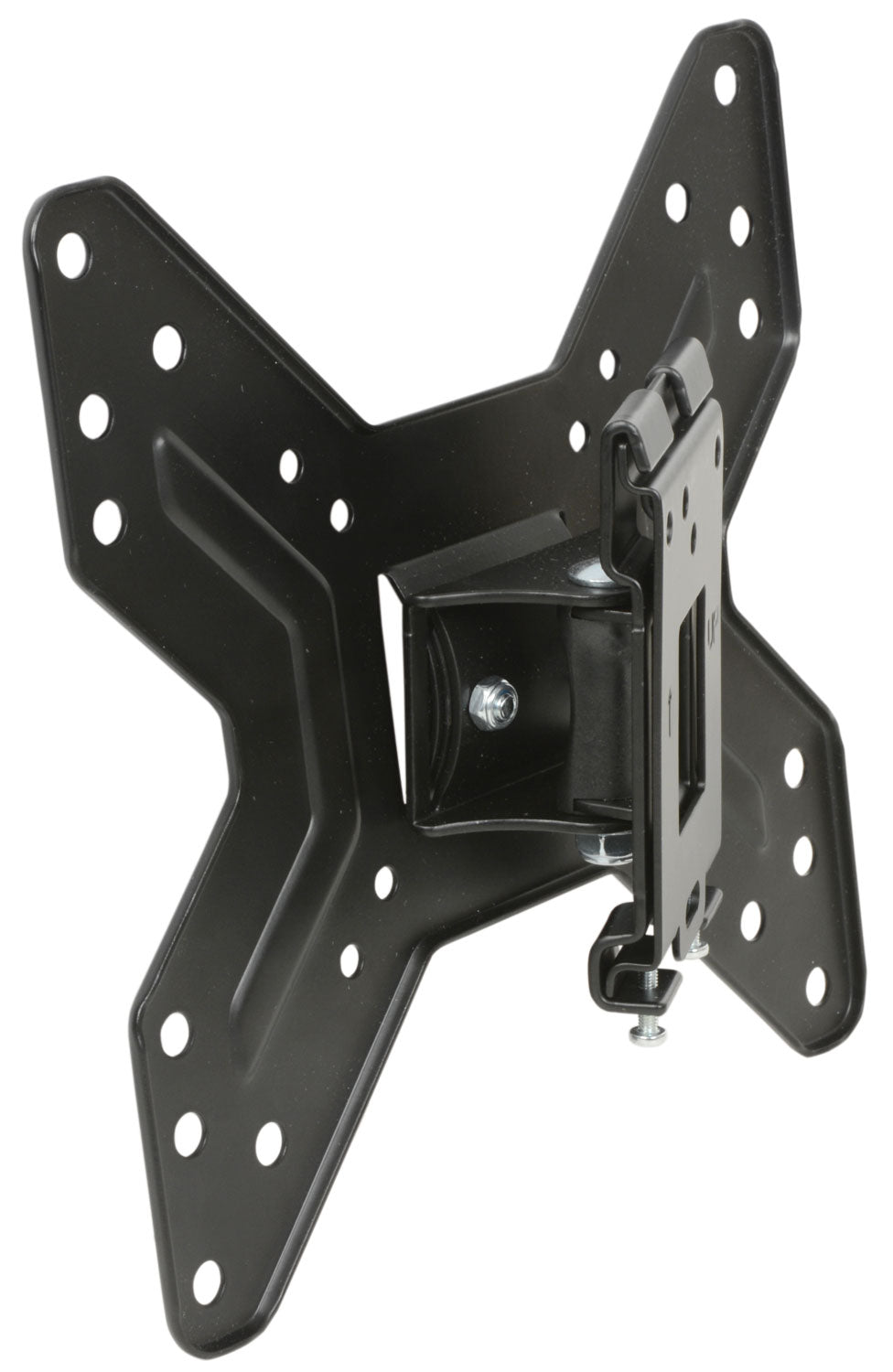

Tilt & Swivel Wall Mount TV/Monitor Bracket 200x200 Max (10-45")

An adjustable rolled steel wall bracket suitable for mounting VESA compatible screens from 10" up to 45"

• Suitable for mounting LCD or LED TV screen sizes 10" to 45"
• 25kg maximum loading capacity
• VESA 75, 100 & 200 hole patterns
• Swivels ±20° from wall connection point
• -5° to +10° tilting mechanism
• Separate wall mounting plate for simple installation
• Installation hardware included

• Max. hole spacing200 x 200mm
• Distance from wall48mm
• Max. weight load25kg
• VESA75 x 75, 100 x 100 and 200 x 200mm
• Wall plate dimensions70 x 120mm (W x H)
• Weight750g
• TV fixing screws provided4 x M4 12mm, 4 x M5 12mm, 4 x M6 12mm, 4 x M8 16mm
