XU series UHF Microphone Systems

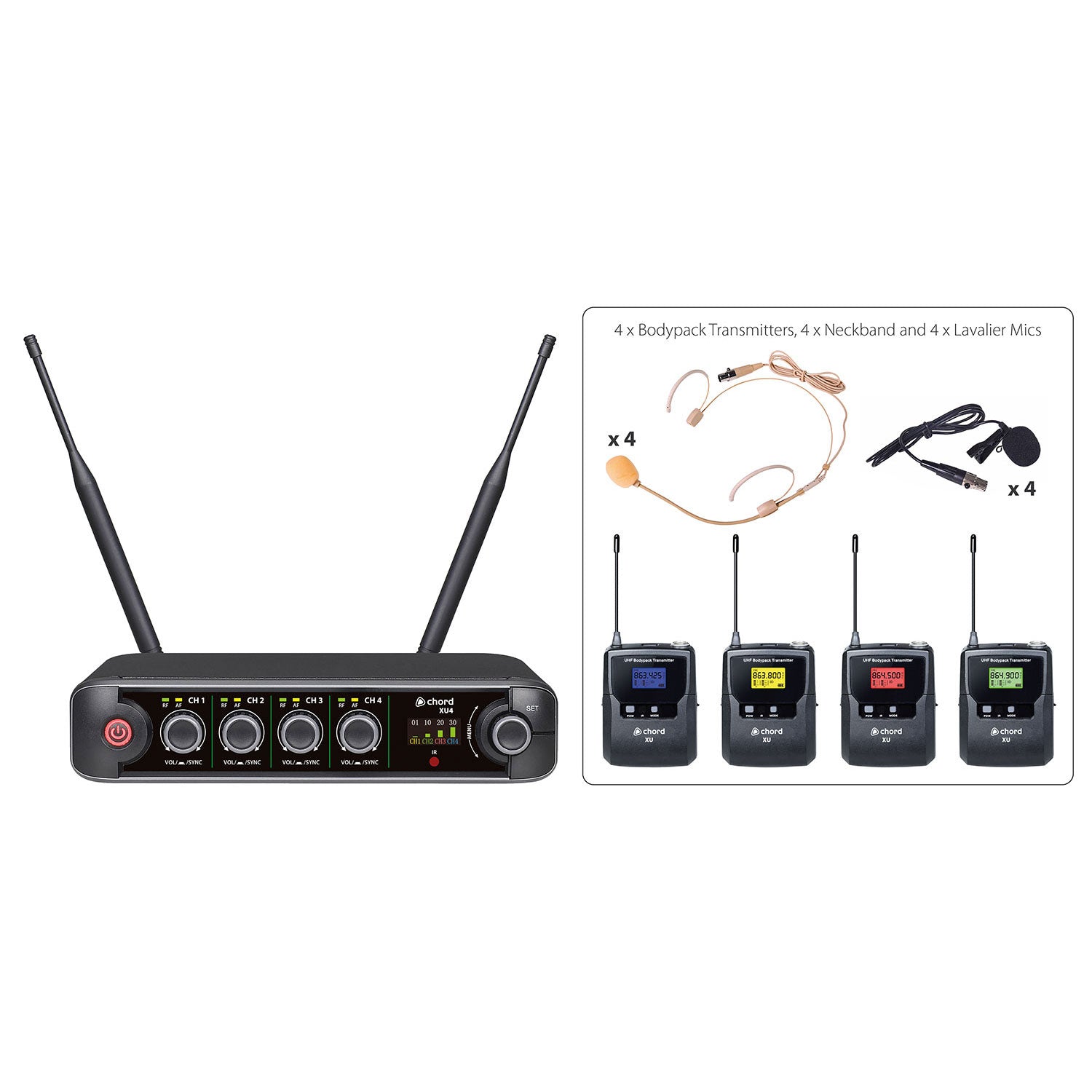

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 1, 2 or 4 channels of either handheld microphones or bodypack transmitters with a neckband and lavalier mic option. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

• Compact half-width rack receiver
• True diversity antennas with internal distro for reliable reception
• 10 groups of 9 selectable UHF carrier frequencies

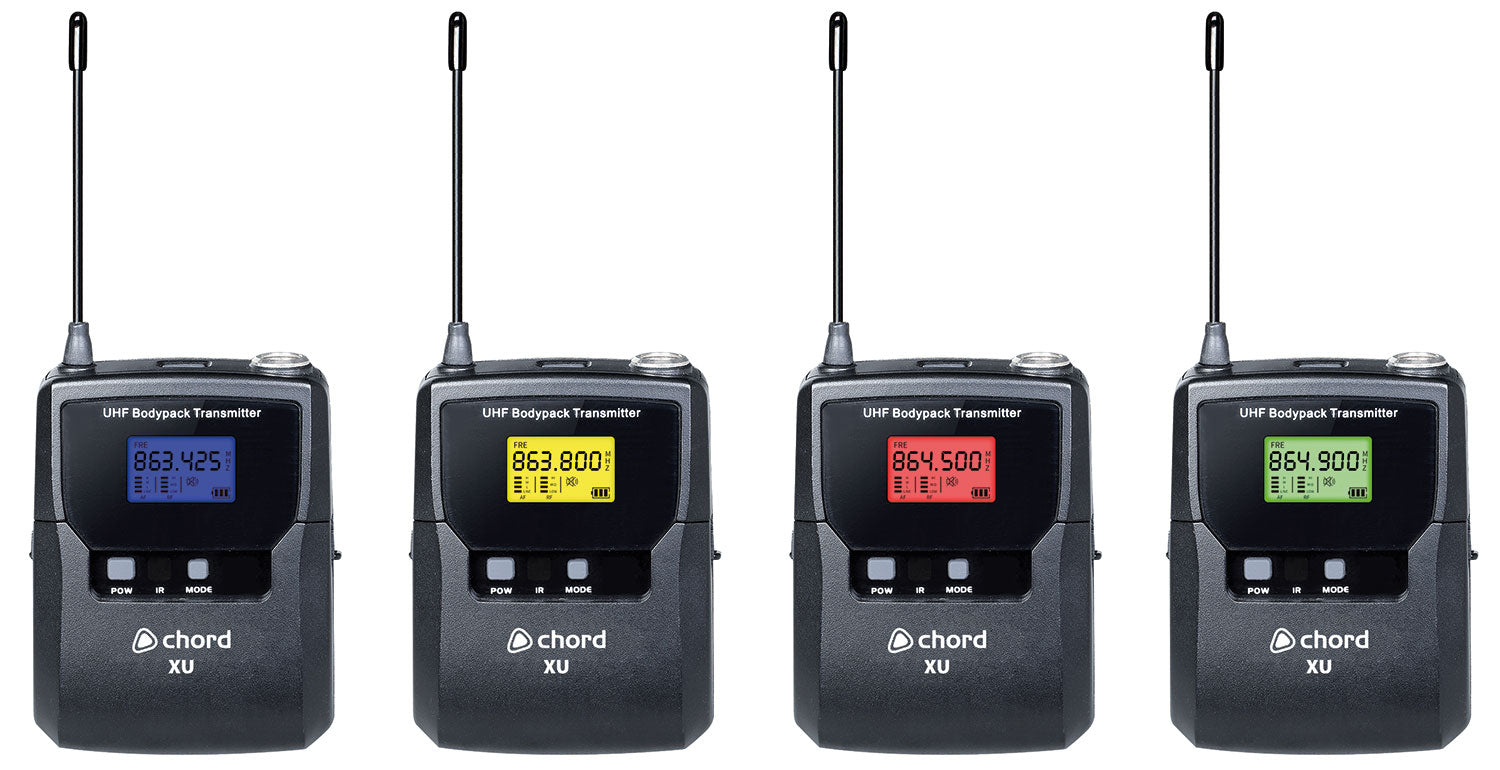

• Selectable backlight colours for each channel

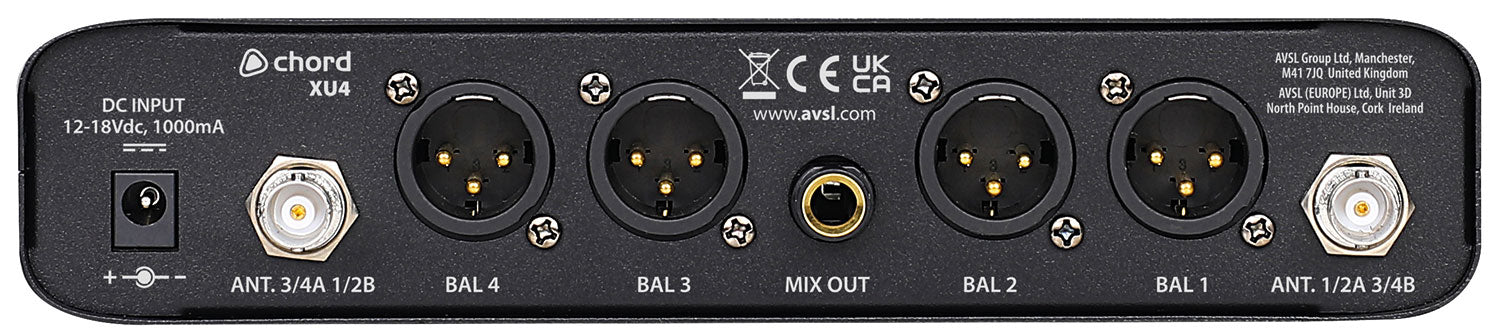

• 1, 2 or 4 x XLR outputs + 1 x 6.3mm mix output
• Settings sync I.R. from receiver to transmitters
• Colour TFT display for settings menu

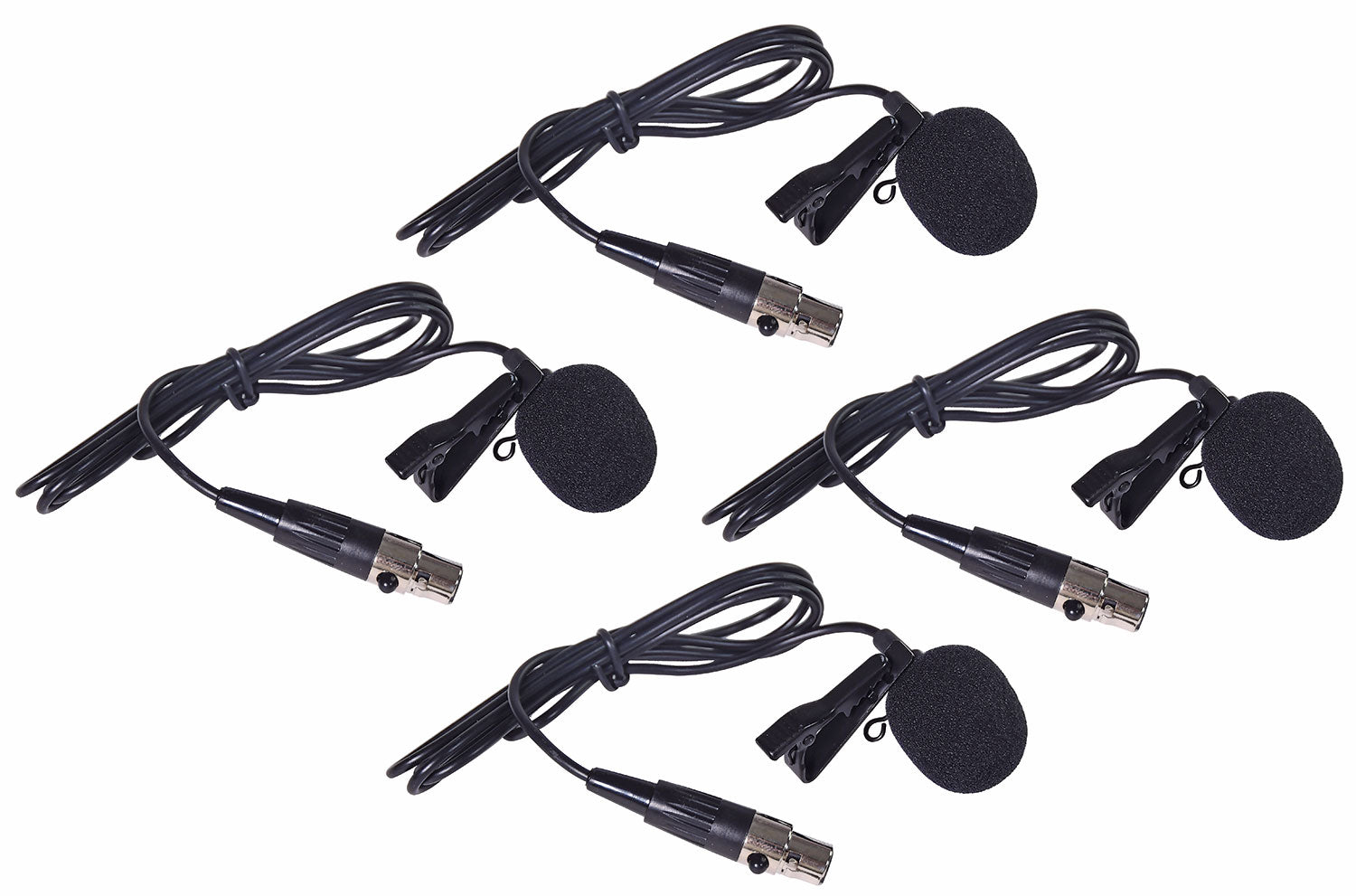

• Weight : lavalier microphone 23g
• Dimensions : lavalier microphone 27 x 12mmØ

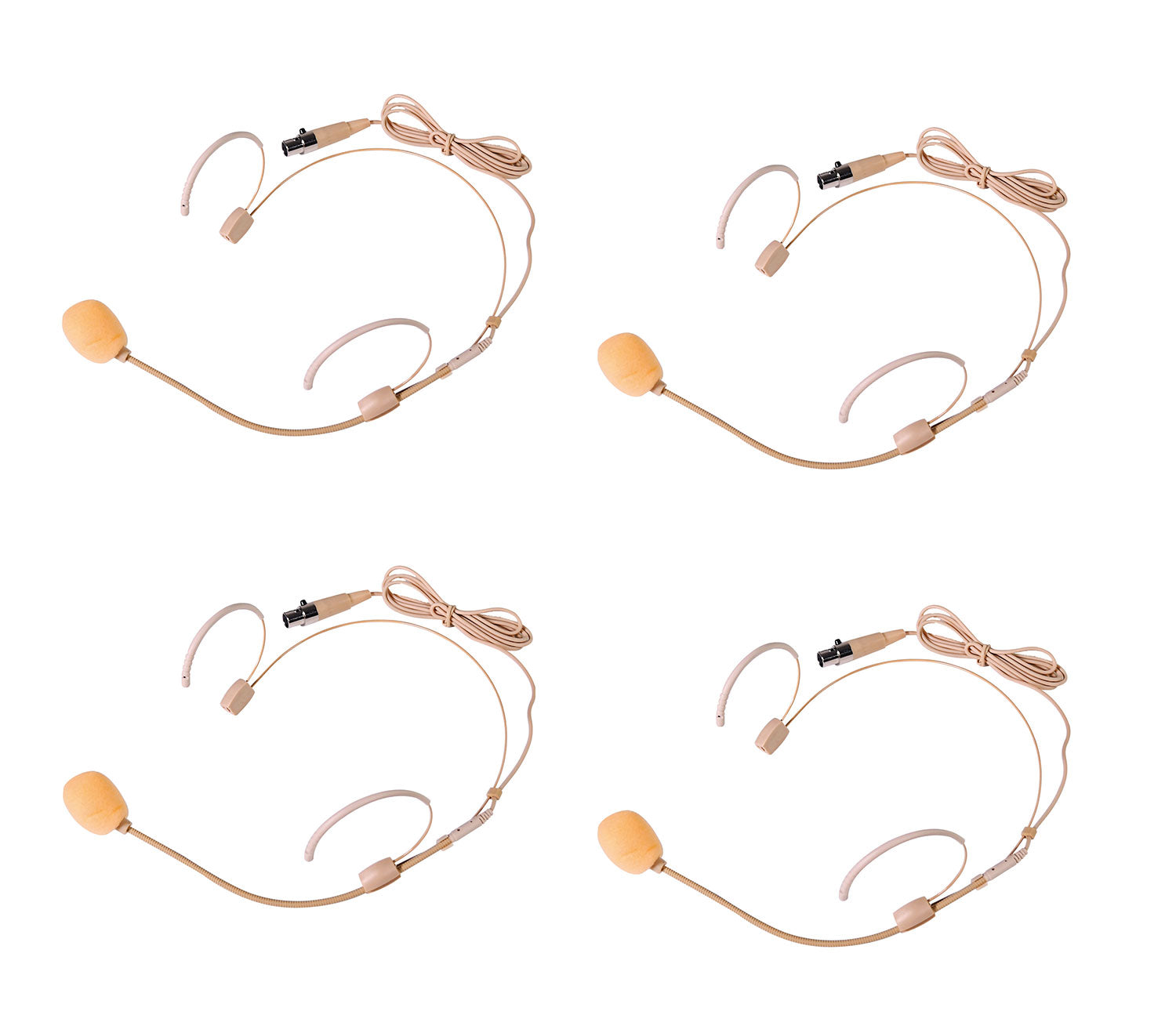

• Weight : neck band microphone 28g
• Dimensions : neck band microphone 180 x 140 x 60mm
• Weight : belt pack transmitter 74g (no battery)
• Dimensions : belt pack transmitter 90 x 60 x 25mm
• Weight : handheld transmitter N/A
• Dimensions : handheld transmitter N/A
• Power supply 12-18Vdc, 1000mA (mains adaptor supplied)
• Batteries 2 x AA per transmitter
• Carrier frequencies 823-832 / 863-865MHz
• Wireless range Up to 60m
• Antenna connection 2 x BNC
• Dimensions : receiver 205 x 205 x 44mm
• Weight : receiver 755g
