DBR10 Active Speaker (Single)

For those that want a big punch but without the inconvenience of lugging around huge speakers, the Yamaha DBR10 Active Loudspeaker offers the best of both worlds. Weighing in at a little over 10Kg, but packing in a massive 700 Watts of power, this powerful unit punches well above its weight.

Not only do you get lots of power from the DBR10, you get superb quality too. This is thanks in large to the 10" cone woofer with a 2" voice coil, and a  1" throat compression tweeter that power out low and high frequencies respectively. The FIR-X Tuning crossover sends the relevent frequencies to the woofer and tweeter, separating at 2.1kHz for superior definition.

The power amp in the Yamaha DBR10 sends 500W to the woofer and 200W to the HF driver. The power consumption of this efficient unit is 60W when active and 18W when idle. When you really have to turn up the volume, the DBR10 comes with an internal 4-speed fan to make sure that any extra heat is dissipated quickly, thus protecting the internal amp.

The ins and outs

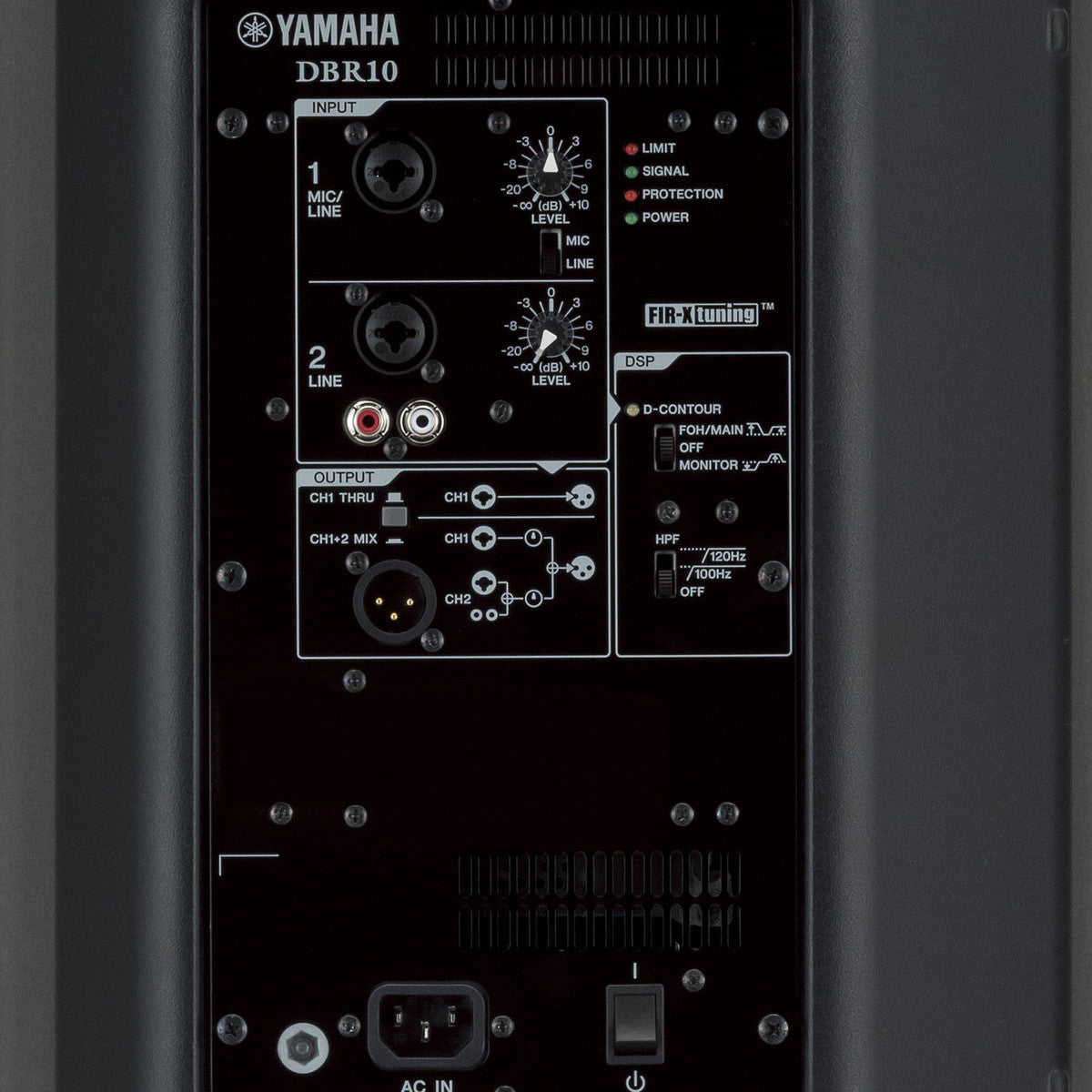

The Yamaha DBR10 comes with a all the inputs you need, including 2 XLR/Jack combos as well as stereo RCA inputs. For output, you have a balanced XLR connection.

For easy control, the gain knobs are situated at the side of the relevant input as well as a handy mic/line switch on input 1. There are also easy configuration switches for high-pass filter settings and the D-Contour switch that will alter the sound coming out of the Yamaha DBR10 depending if you want to use it as a PA speaker or monitor.

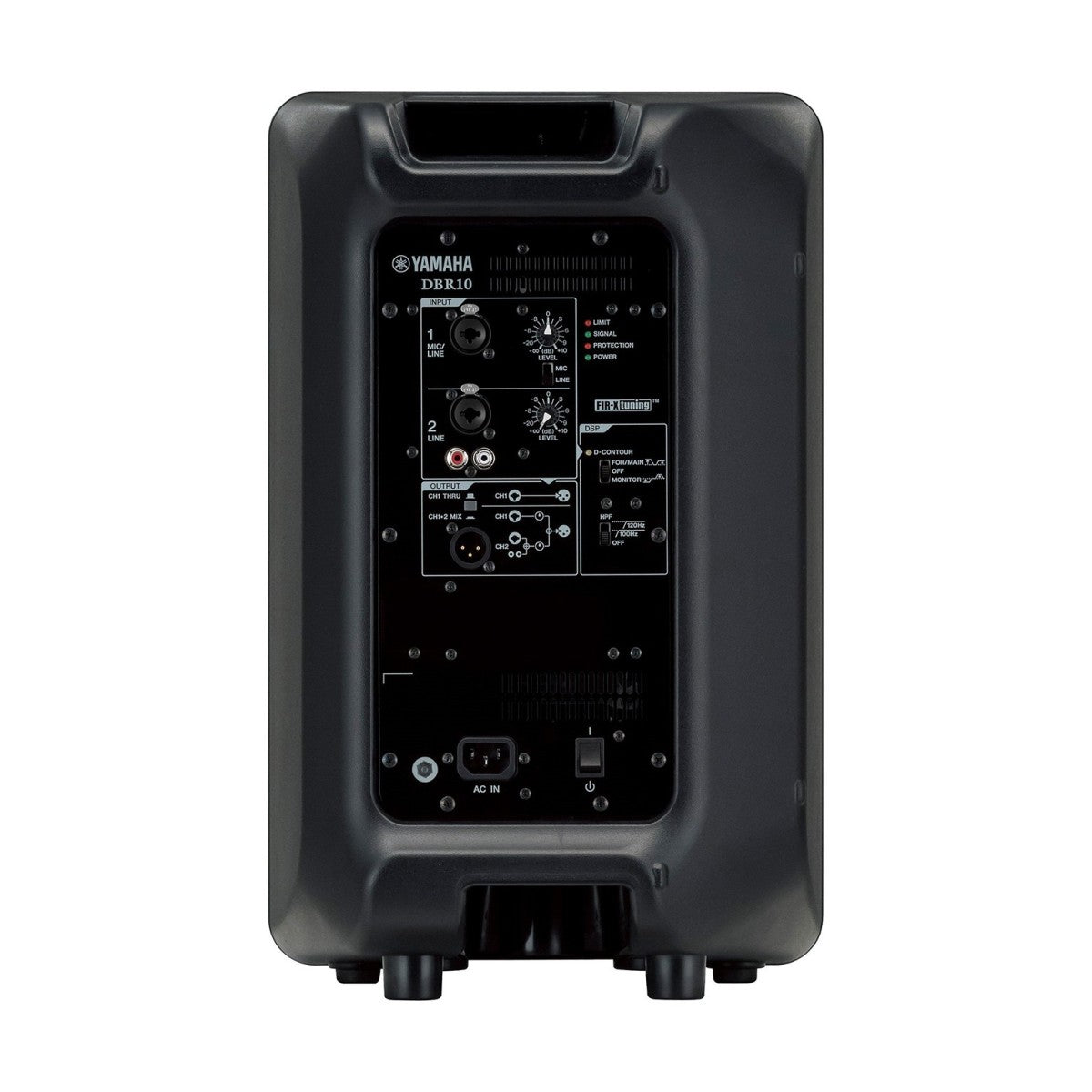

Finally, the back panel also has clear LED markings to show the status of the Amp. Limit, signal, protection and power can be easily checked at a glance.

Lightweight, incredibly solid and very powerful, the Yamaha DBR10 is ideal for solo, duo or small bands that want exceptional quality and punch without having to pull any muscles. Built by a company renowned for its high-quality products.

• 325 watt active loudspeaker
• 10 inch woofer and 1 inch tweeter
• 55 Hz to 20 kHz frequency range
• FIR-X tuning crossover system
• 4-speed internal fan for optimal cooling
