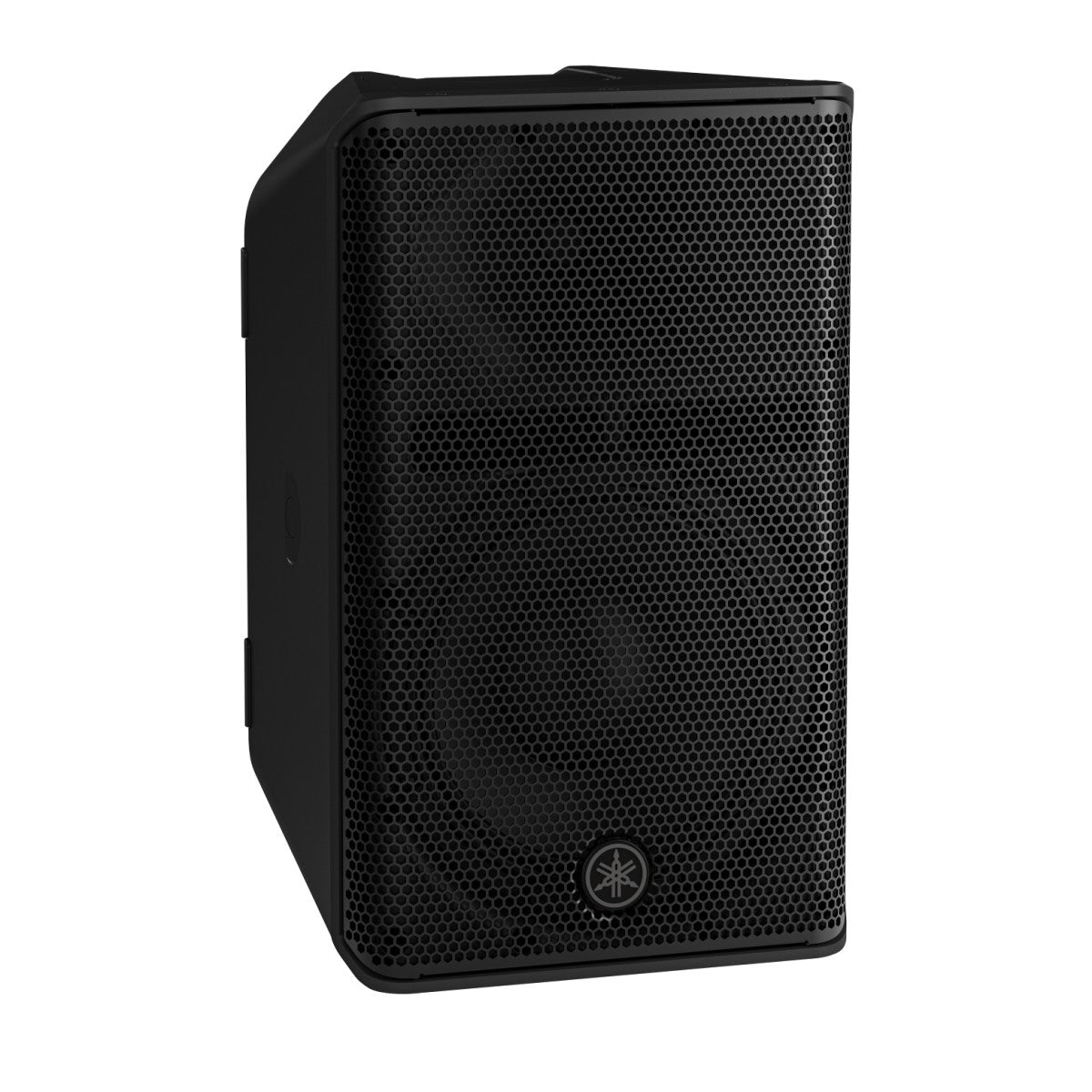

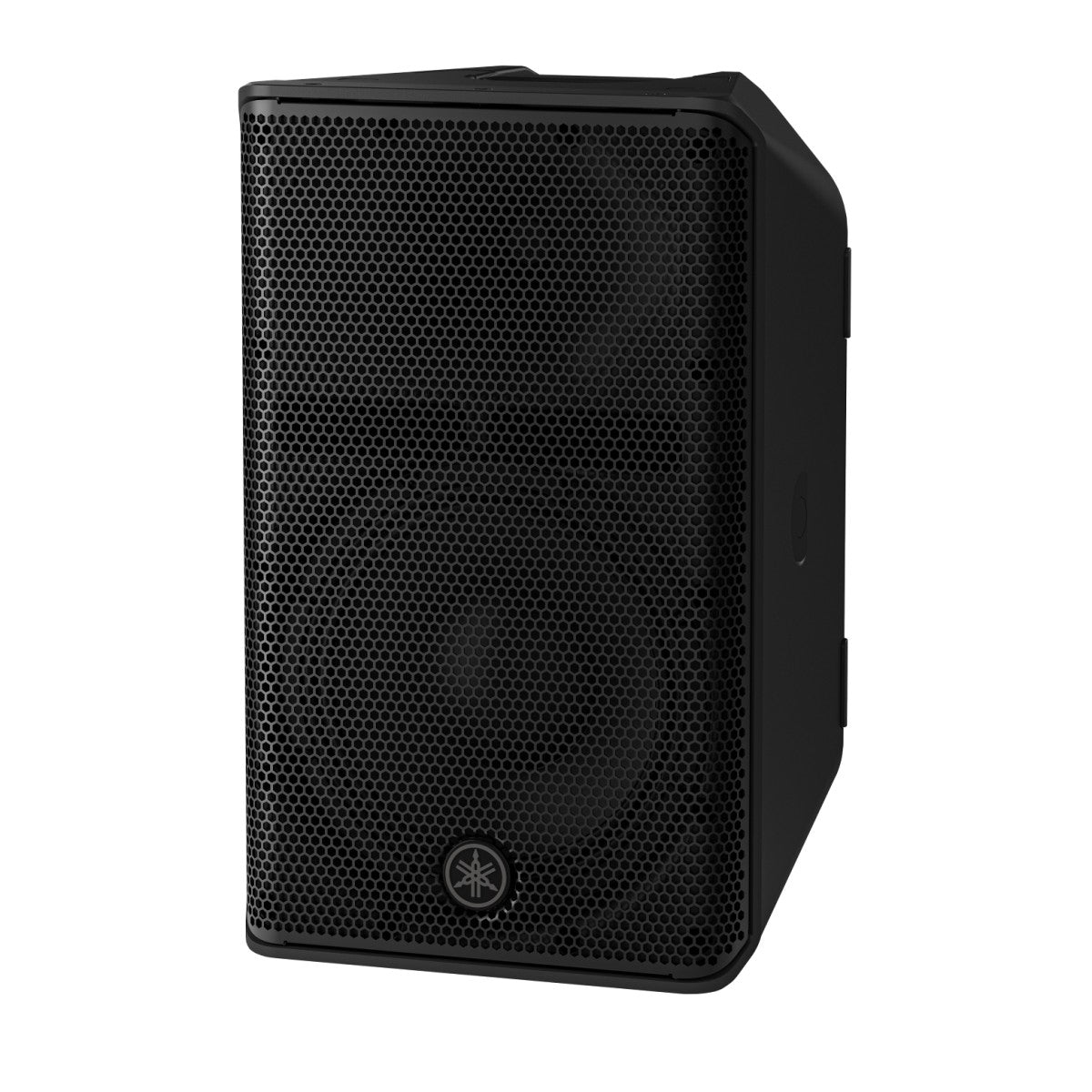

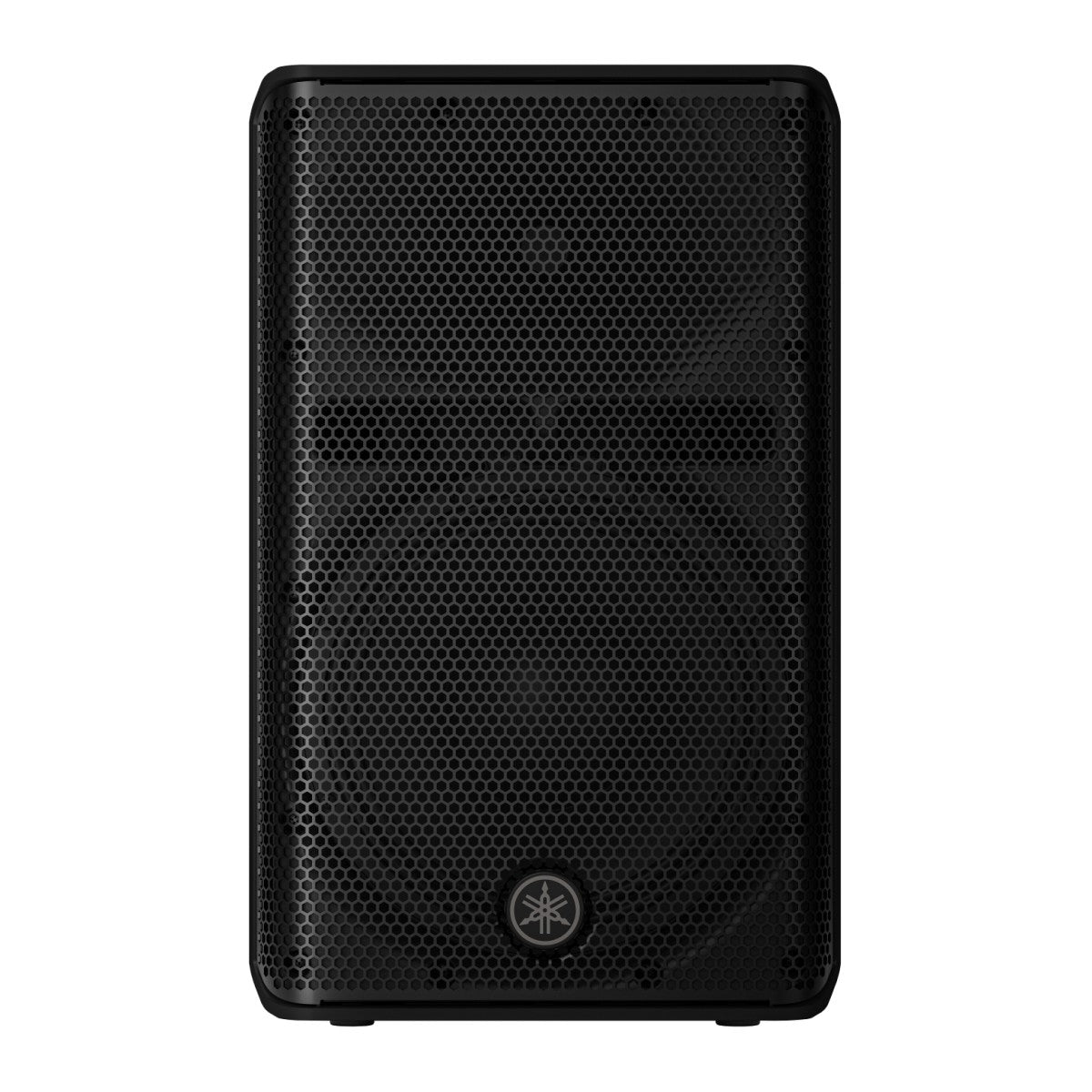

Yamaha DXR10 MK3 10" Active PA Speaker

The Yamaha DXR10 MK3 active PA speaker is designed to deliver clear, reliable sound for a wide range of live and installed applications. Building on the proven DXR Series, it combines precise audio performance with advanced DSP processing and flexible wireless control. A 10-inch low-frequency driver and high-frequency unit provide balanced, consistent sound, supported by 96kHz DSP and FIR-X tuning for improved clarity and phase response.

Bluetooth audio streaming allows quick wireless playback, while control via the D-Remote app enables easy system adjustment and monitoring. A newly developed 2000W Class-D amplifier delivers strong output with dependable headroom. Housed in a durable moulded enclosure designed to reduce resonance, the DXR10 MK3 is suitable for portable PA, monitoring, or installation use.

Advanced DSP and System Control

High-resolution DSP processing with FIR-X tuning helps optimise clarity and phase alignment, supporting a more accurate and controlled sound. Drive Motion Calibration improves low-frequency performance for tighter bass response, while an intelligent feedback suppressor helps reduce unwanted noise during live use. A built-in LCD display and encoder provide clear, hands-on control, and wireless operation via the D-Remote app allows remote adjustment, monitoring, and system management across multiple speakers.

Consistent Power and Audio Performance

A newly developed 2000W Class-D amplifier delivers consistent output with ample headroom, supporting reliable performance in demanding environments. Yamaha-designed LF and HF drivers are engineered for quality control and long-term reliability, ensuring dependable results across different applications. This combination provides clear reproduction for both speech and music, maintaining balance and presence even at higher levels.

Optimised Coverage and Low-End Control

An optimised horn design works alongside precise DSP control to deliver even sound dispersion and consistent coverage. Port tuning and Drive Motion Calibration support improved low-frequency control, helping maintain definition and impact. Auto vertical and horizontal positioning settings further assist with adapting performance based on speaker placement, whether used front-of-house or as a monitor.

Durable Design and Flexible Setup

High-performance moulded construction reduces unwanted resonance while providing durability for regular transport and installation. A symmetrical cabinet design supports use as a floor monitor, while a dual-angle pole socket improves audience coverage. Integrated rigging points allow secure installation, and the overall design supports flexible deployment across portable, installed, and rental applications.

Features

• 96kHz DSP with FIR-X tuning
• Drive Motion Calibration for controlled low end
• 2000W Class-D amplifier with high headroom
• Bluetooth audio streaming for wireless playback
• D-Remote app for wireless control and monitoring
• LCD display with rotary encoder for setup
• Intelligent feedback suppressor function
• Flexible mounting and monitoring configurations

Specifications

• Speaker Type: 2-way bi-amped active PA speaker, bass-reflex
• Frequency Response: 53 Hz – 20 kHz
• Coverage: 90° horizontal x 60° vertical
• Crossover: 1.8 kHz with FIR-X tuning (linear phase FIR)
• Maximum SPL: 132 dB
• LF Driver: 10" cone, 2.5" voice coil
• HF Driver: 1.75" diaphragm, 1" throat compression driver
• Amplifier Type: Class-D
• Power Output (Peak): 2000 W (LF 1700 W, HF 300 W)
• Power Output (Continuous): 1000 W (LF 850 W, HF 150 W)
• Cooling: Fan cooling with 5 speed settings
• Power Consumption: 120 W (1/8 power), 35 W (idle)
• Power Supply: 100–240 V, 50/60 Hz
• Sampling Rate: 32-bit / 96 kHz
• DSP Functions: HPF (Off, 50–118 Hz), 12–48 dB/oct
• DSP Modes: FOH/Main, Monitor, DJ, Live Music, Speech, Off

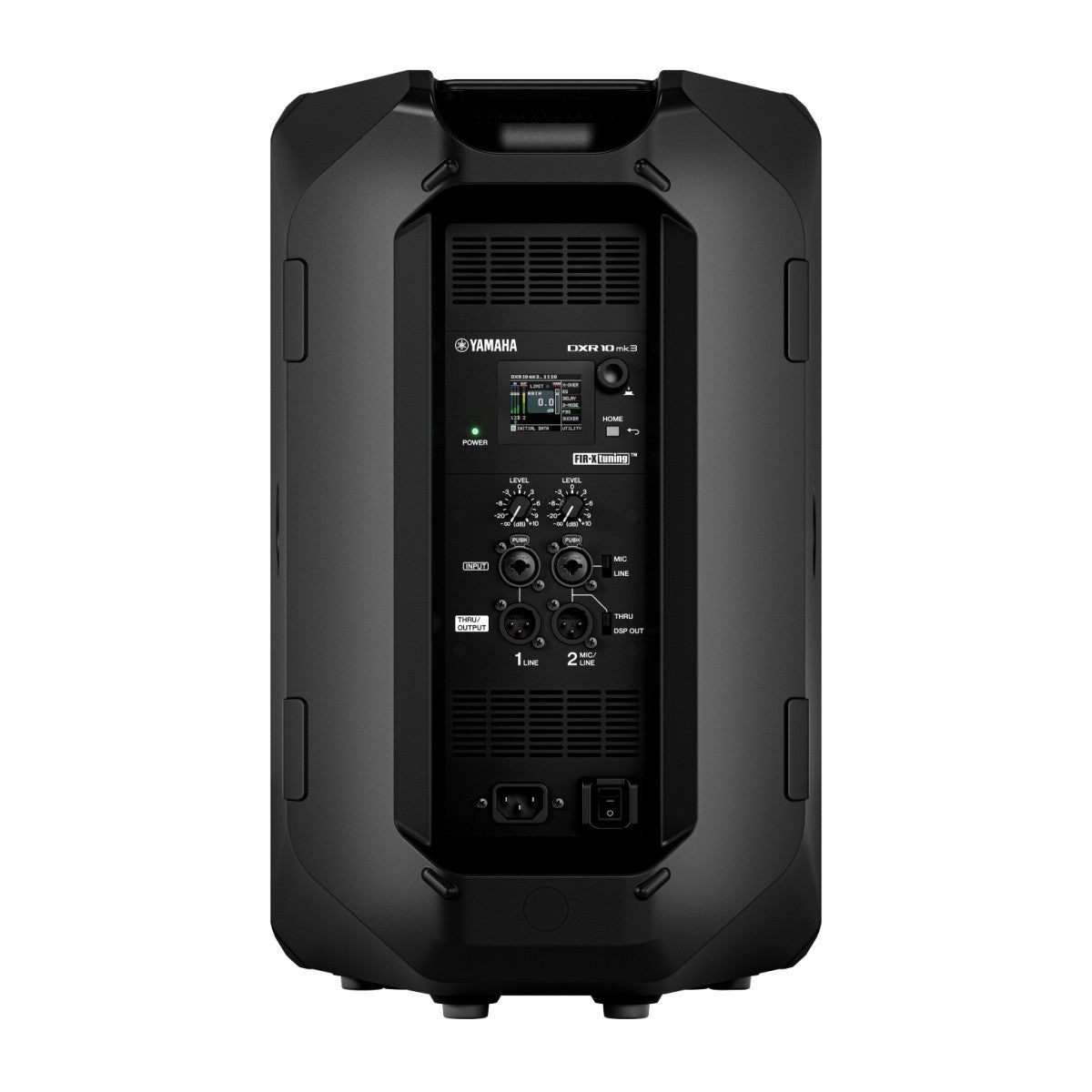

• Inputs: 2 x combo (XLR/TRS)
• Input 1 Impedance: 20 kΩ balanced, 10 kΩ unbalanced
• Input 2 Impedance: 6 kΩ balanced, 3 kΩ unbalanced
• Maximum Input Level: +24 dBu (Line), -6 dBu (Mic)
• Outputs: XLR thru and selectable DSP out
• Bluetooth: Version 5.0, A2DP (SBC, AAC), Class 1
• Remote Control: D-Remote app (iOS/Android)
• Enclosure Material: Plastic
• Finish: Black
• Pole Mount: 35 mm x2 (0° or -7°)
• Handle: Top x1
• Rigging Points: Top x2, rear x1, bottom x2, side x2 (M8 compatible)
• Monitor Angle: 55°
• Dimensions (W x H x D): 310 x 502 x 310 mm
