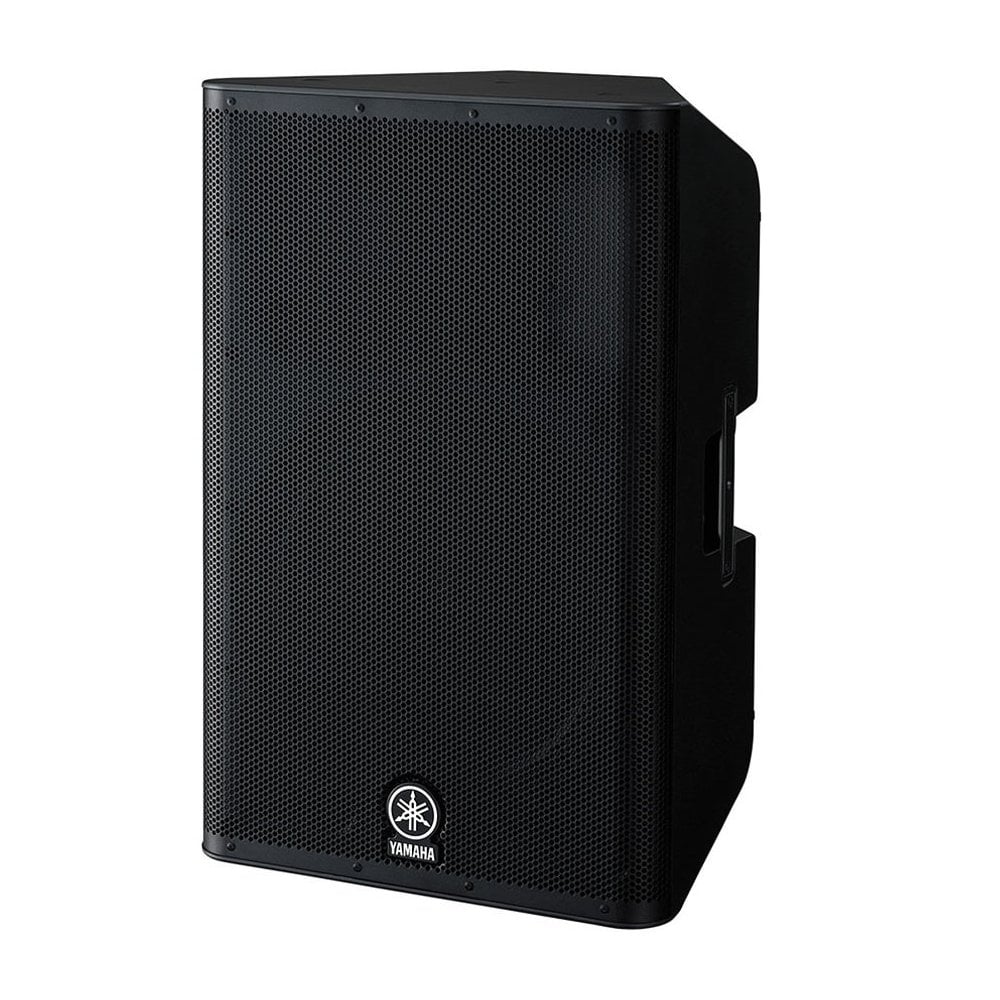

Yamaha DXR15 MKII Active Speaker

Introducing the Yamaha DXR15 mkII PA speaker; the largest in Yamaha's new DXR mkII series. For the DXR mkIIs Yamaha have taken everything positive from the original DXR series and have worked alongside NEXO (an innovative loudspeaker research and development company) to produce these professional and powerful units. The Yamaha DXR15 mkII features a super lightweight 1.75" Neodymium HF compression driver that delivers accurate high range frequencies, as well as a powerful 15" LF driver with bass that's rich enough to compete with a subwoofer.

DXR15mkII 15" 2-way Powered Loudspeaker

The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.

Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75" Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity youve come to expect from the DXR Series... only MORE.

Features:

• Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
• Less Weight, More Power:
  - Custom-Designed Transducers improved : All DXR mkII Series transducers were meticulously selected and thoroughly customized to deliver ultimate performance.
  - Wide Dispersion Constant Directivity Horn: The larger HF transducer is mounted to an all-new 90 x 60 degrees constant directivity horn, designed with the goal of minimising radiation pattern deterioration in oblique directions as more conventional horns are prone to doing.
• The Power of "D":  Combined with Yamahas advanced analog signal processing and acoustic technologies, the "Power of "D" delivers ultimate performance.
• Ultra-Precise 48Bit DSP Processing for High-Definition Sound: All full range models feature Yamaha's proprietary FIR-X tuning utilising linear phase FIR* filters for the crossover network.
• Intelligent Dynamic Control for Consistent Clarity at Any Output Level: D-CONTOUR is an intelligent multi-band compressor that gives you powerful and consistent sound throughout all output levels.
• Extensive DSP Protection Functions for Maximum Output
• High-Efficiency 1100W Class-D Amplifiers: All DXR mkII Series loudspeakers are equipped with highly efficient Class-D amplifiers that were optimally designed to match the DXRmkII's HF and LF transducers.
• Intelligent Onboard 3-Channel Mixer: The DXR mkII Series features a flexible onboard mixer with a variety of input, making it ideal for simple vocal/ instrument amplification.
• Durable, Compact ABS Enclosures: DXR mkII Series is moulded in rugged, non-resonant ABS enclosures and are designed to dampen down vibrations caused by high output levels, producing less distortion and superior sonic quality.
• Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring: The DXR15mkII and DXR12mkII's enclosure design enables mirror-mode monitor placement that creates a symmetrical sound field for the performer with a larger, more defined "sweet spot".
• Dual-Angle Pole Mount Socket: The DXR mkII's pole mount socket offers two positions - 0 degrees and 7 degrees - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.
• Rigging Points for Standard Eye-Bolts and Optional U-Brackets:

Specifications:

• Speaker type: 15" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 49Hz - 20kHz
  Nominal coverage:
  - H: 90 degrees
  - V: 60 degrees
• Components:
  - LF: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite
  - HF: Diaphragm:1.75", Type: 1" throat compression driver, Magnet: Neodymium
• Crossover: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis): 134dB SPL
• I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Power requirements: 100V - 240V, 50Hz/60Hz
• Power consumption: 110W
• Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
• Pole socket: 35mm with 2-way features (0 or 7 degrees)
• Dimensions (W x H x D): 445 x 700 x 380mm | 17 4/8 x 27 4/8 x 15"
• Net weight: 21.8kg | 48.1lbs
• Accessories: UB-DXR15 (U-bracket)
• Others: Material: ABS (Matte Finish, Black)
