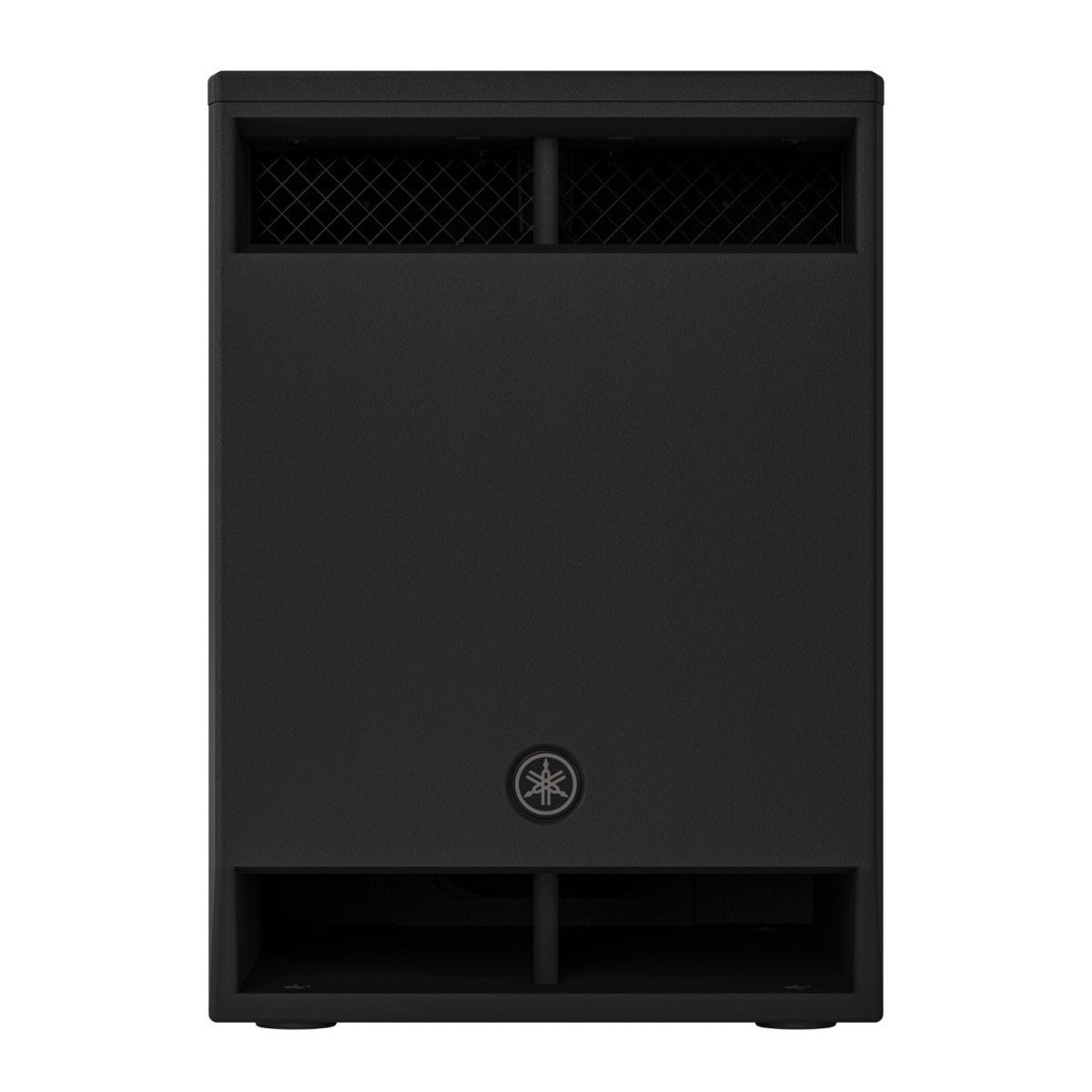

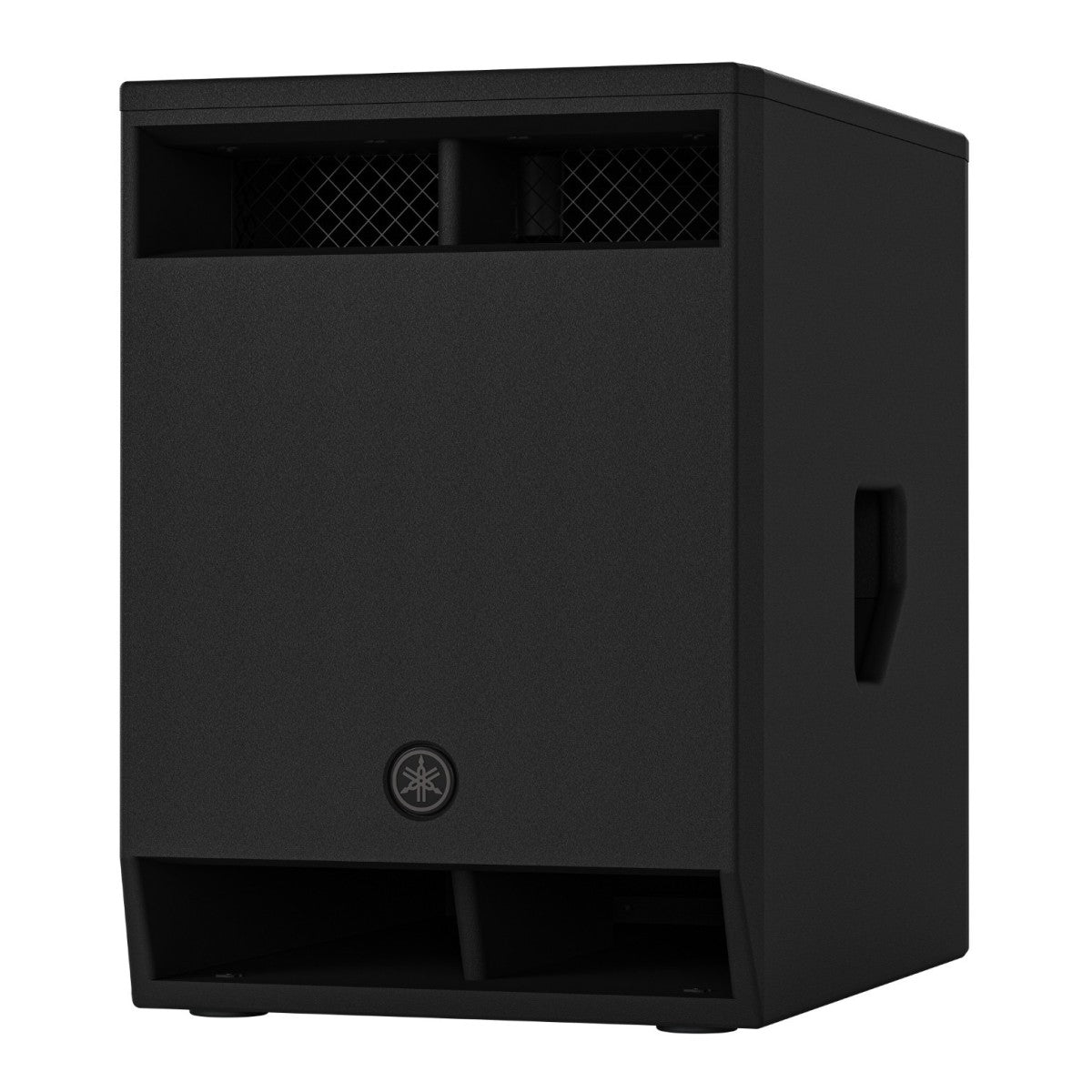

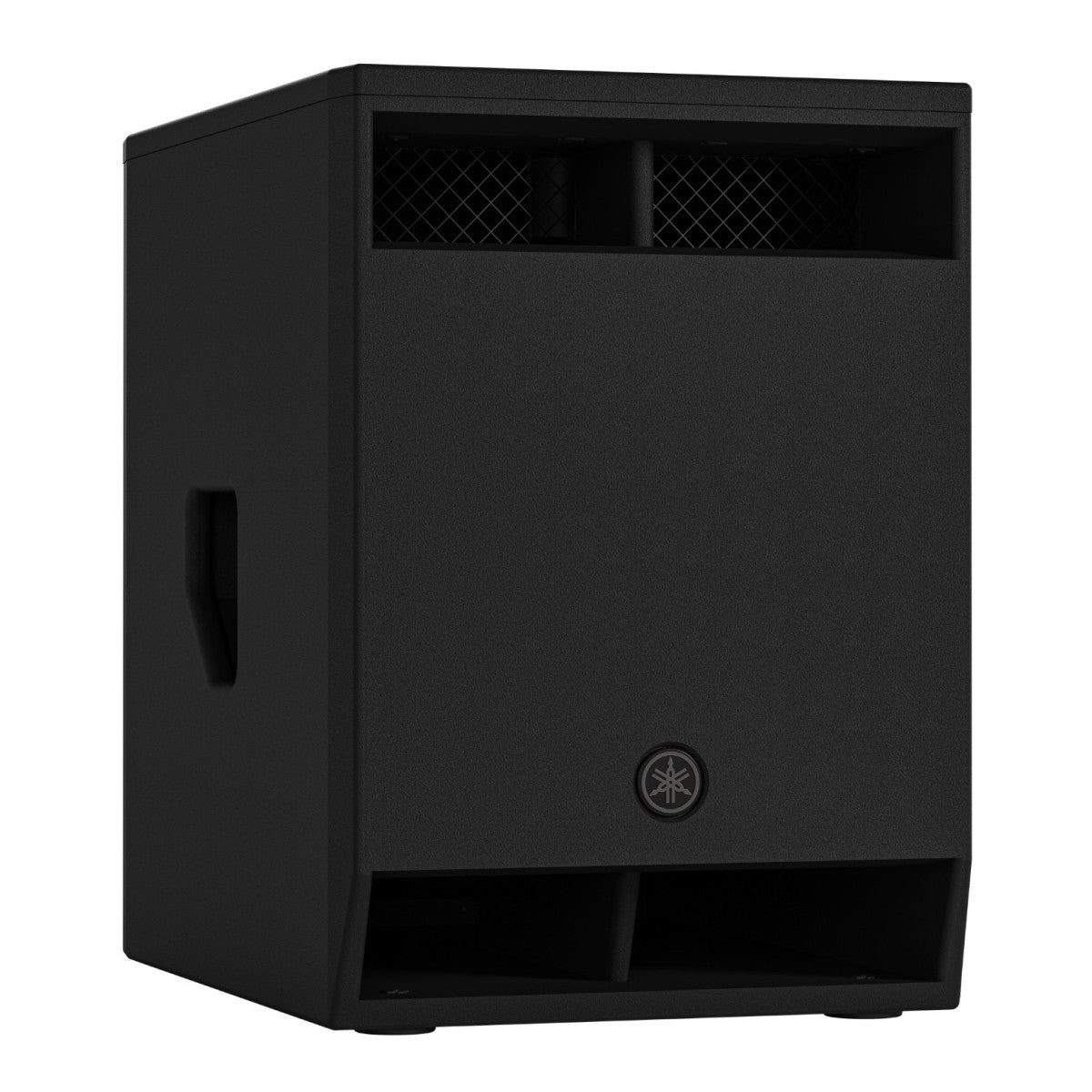

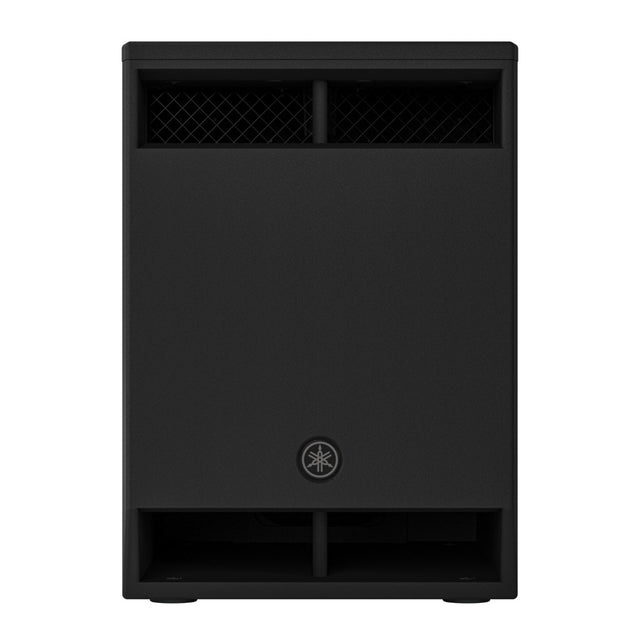

Yamaha DXS12 MK3 12" Active PA Subwoofer

The Yamaha DXS12 mk3 is a compact powered subwoofer designed to deliver controlled, high-output low-frequency performance for professional sound systems. Featuring a newly developed 2500W Class-D amplifier and a 12" long-excursion driver, it provides clear and consistent bass across a wide frequency range.

Advanced DSP processing with selectable D-XSUB modes allows you to tailor the low-end response to suit different applications, while built-in Bluetooth connectivity supports wireless control via the D-Remote app. The robust plywood cabinet with durable polyurea coating is built for regular transport and live use. With flexible connectivity, precise tuning options, and reliable performance, the DXS12 mk3 is well suited to live sound, DJs, and installed audio setups.

Powerful Low-End Performance

The DXS12 mk3 combines a high-efficiency 2500W Class-D amplifier with a 12-inch driver to deliver strong, defined bass. Its band-pass design helps reduce unwanted noise while maintaining clarity at higher output levels. With a maximum SPL of 132 dB and a frequency range down to 38 Hz, it provides dependable low-frequency support for a wide range of professional audio applications.

Flexible DSP Control

Built-in 96 kHz DSP processing allows detailed control over your system’s low-end response. D-XSUB modes including NORMAL and XTENDED LF help tailor the bass to suit different environments or programme material. Adjustable high-pass filter settings and crossover control provide further flexibility when integrating with full-range speakers.

Reliable and Practical Design

The enclosure is constructed from plywood and finished with a durable polyurea coating to withstand regular transport and setup. Fan cooling with variable speeds helps maintain stable operation during extended use. Integrated handles and standard pole mount options support straightforward installation and positioning in both portable and fixed systems.

Modern Connectivity and Control

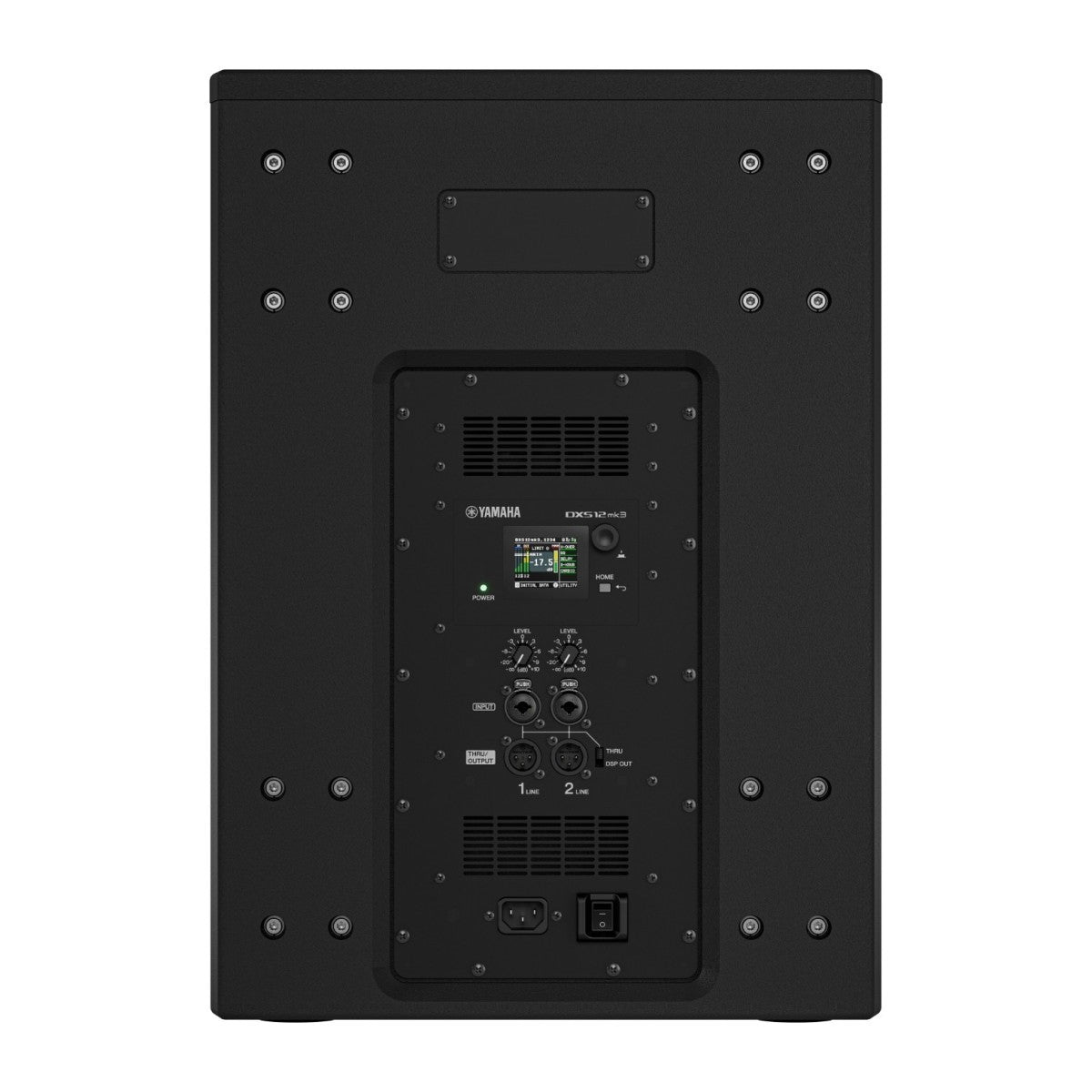

The DXS12 mk3 supports Bluetooth audio streaming and remote operation via the D-Remote app for iOS and Android devices. With combination XLR inputs and selectable THRU or DSP outputs, it integrates easily into a variety of system setups. This combination of wired and wireless control options makes it easier to manage your sound in real-world environments.

Features

• 12" cone driver with 3" voice coil
• 2500W peak Class-D amplification
• Band-pass enclosure design for reduced noise
• 96 kHz DSP processing for accurate control
• D-XSUB modes for tailored bass response
• Bluetooth audio streaming capability
• D-Remote app control for iOS and Android
• Plywood cabinet with polyurea coating

Specifications

• System Type: Powered subwoofer, band-pass
• Frequency Range: 38 Hz – 140 Hz
• Maximum SPL: 132 dB
• LF Driver: 12" cone, 3" voice coil
• Amplifier Type: Class-D
• Power Output: 2500 W peak, 1250 W x2
• Cooling: Fan cooling, 5 speeds
• DSP: 32-bit / 96 kHz processing
• HPF: OFF, 50 Hz – 118 Hz, 12–48 dB/oct
• DSP Modes: NORMAL, XTENDED LF
• Inputs: Combo x2 (XLR/TRS)
• Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
• Maximum Input Level: +24 dBu
• Outputs: XLR THRU or DSP OUT x2
• Bluetooth: Version 5.0, A2DP (SBC, AAC), Class 1
• Remote Control: D-Remote (iOS/Android)
• Cabinet Material: Plywood
• Finish: Polyurea coating, black
• Handles: Side x2
• Pole Mount: 35 mm socket, M20 threaded
• Dimensions (W x H x D): 400 x 567 x 570 mm
• Weight: 33.0 kg
• Power Supply: 100–240 V, 50/60 Hz
• Power Consumption: 130 W (1/8 power), 40 W (idle)
