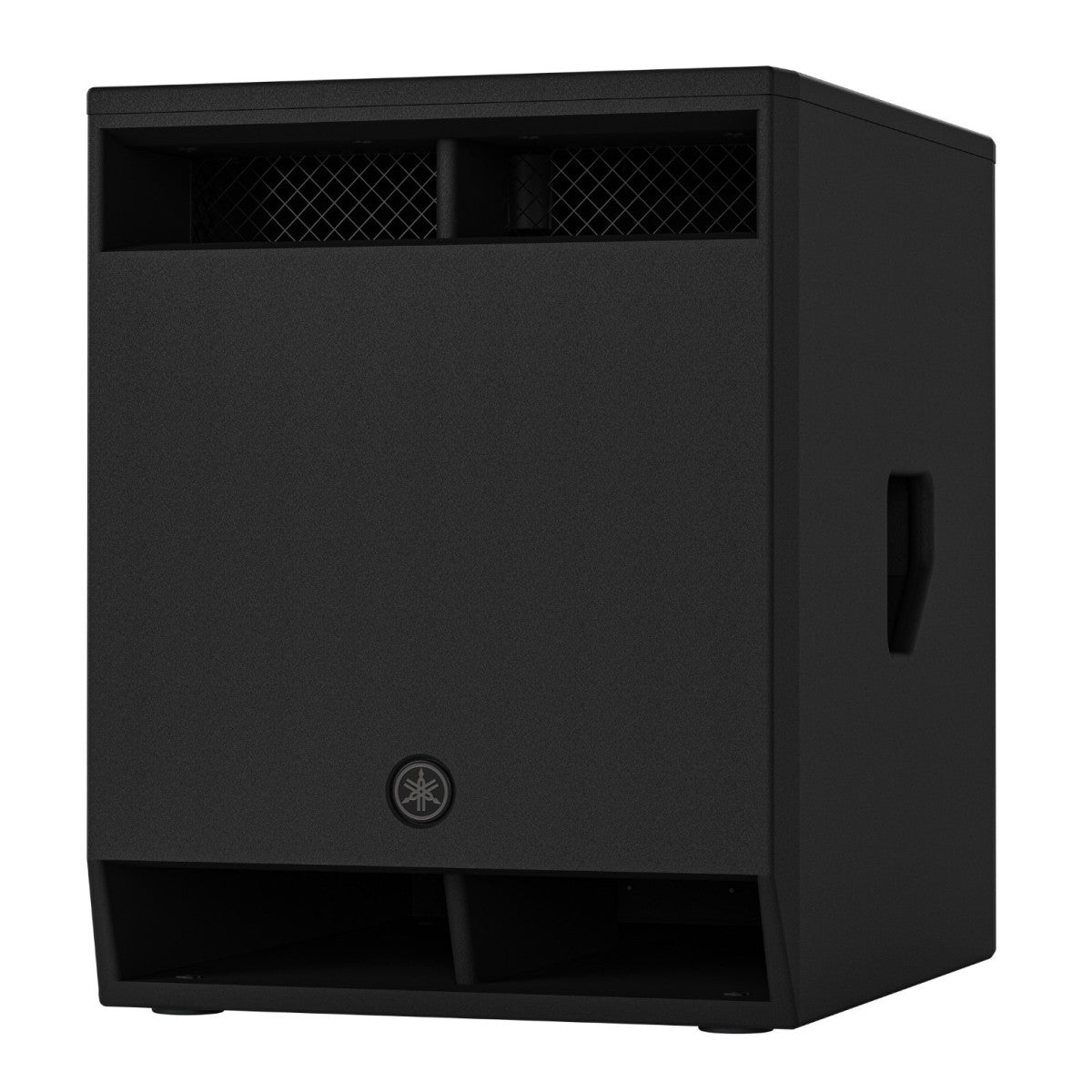

Yamaha DXS15 MK3 15" Active PA Subwoofer

The Yamaha DXS15 mk3 is a powered subwoofer designed to deliver strong, controlled low-frequency performance for professional sound systems. Equipped with a 2500W Class-D amplifier and a 15" long-excursion driver, it produces clear and consistent bass across a wide frequency range. Advanced DSP processing with selectable D-XSUB modes allows you to shape the low-end response to suit different applications, while Bluetooth connectivity supports wireless control using the D-Remote app. The robust plywood cabinet with durable polyurea coating is built for regular transport and demanding environments. With flexible connectivity, reliable operation, and practical control options, the DXS15 mk3 is well suited to live sound, DJs, and installed audio systems.

Strong and Controlled Bass Performance

The DXS15 mk3 combines a high-efficiency 2500W Class-D amplifier with a 15-inch driver to deliver solid, defined low-end output. Its band-pass enclosure design helps reduce unwanted noise while maintaining clarity at higher levels. With a maximum SPL of 133 dB and extended low-frequency response down to 35 Hz, it provides dependable bass reinforcement for a wide range of professional applications.

Flexible DSP for System Integration

Featuring 96 kHz DSP processing, the DXS15 mk3 offers detailed control over your low-frequency output. D-XSUB modes such as NORMAL and XTENDED LF allow you to adapt the bass response depending on the application. Adjustable high-pass filter settings and crossover options make it easier to integrate the subwoofer with full-range speakers.

Durable Build for Regular Use

The cabinet is constructed from plywood and finished with a durable polyurea coating, helping it withstand transport and repeated use. Fan cooling with multiple speed settings supports stable performance during extended operation. Integrated side handles and standard pole mounting options make positioning and setup straightforward.

Modern Connectivity and Remote Control

The DXS15 mk3 includes Bluetooth audio streaming and supports remote control via the D-Remote app for iOS and Android devices. Combination inputs and flexible XLR outputs allow for easy integration into a range of PA setups. These features provide practical control and adaptability in real-world sound environments.

Features

• 15" cone driver with 3" voice coil
• 2500W peak Class-D amplification
• Band-pass enclosure for controlled bass output
• 96 kHz DSP processing for precise tuning
• D-XSUB modes for flexible bass shaping
• Bluetooth audio streaming capability
• D-Remote app control for remote operation
• Plywood cabinet with durable polyurea finish

Specifications

• System Type: Powered subwoofer, band-pass
• Frequency Range: 35 Hz – 140 Hz
• Maximum SPL: 133 dB
• LF Driver: 15" cone, 3" voice coil
• Amplifier Type: Class-D
• Power Output: 2500 W peak, 1250 W x2
• Cooling: Fan cooling, 5 speeds
• DSP: 32-bit / 96 kHz processing
• HPF: OFF, 50 Hz – 118 Hz, 12–48 dB/oct
• DSP Modes: NORMAL, XTENDED LF
• Inputs: Combo x2 (XLR/TRS)
• Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
• Maximum Input Level: +24 dBu
• Outputs: XLR THRU or DSP OUT x2
• Bluetooth: Version 5.0, A2DP (SBC, AAC), Class 1
• Remote Control: D-Remote (iOS/Android)
• Cabinet Material: Plywood
• Finish: Polyurea coating, black
• Handles: Side x2
• Pole Mount: 35 mm socket, M20 threaded
• Dimensions (W x H x D): 480 x 611 x 614 mm
• Weight: 37.0 kg
• Power Supply: 100–240 V, 50/60 Hz
• Power Consumption: 130 W (1/8 power), 40 W (idle)
