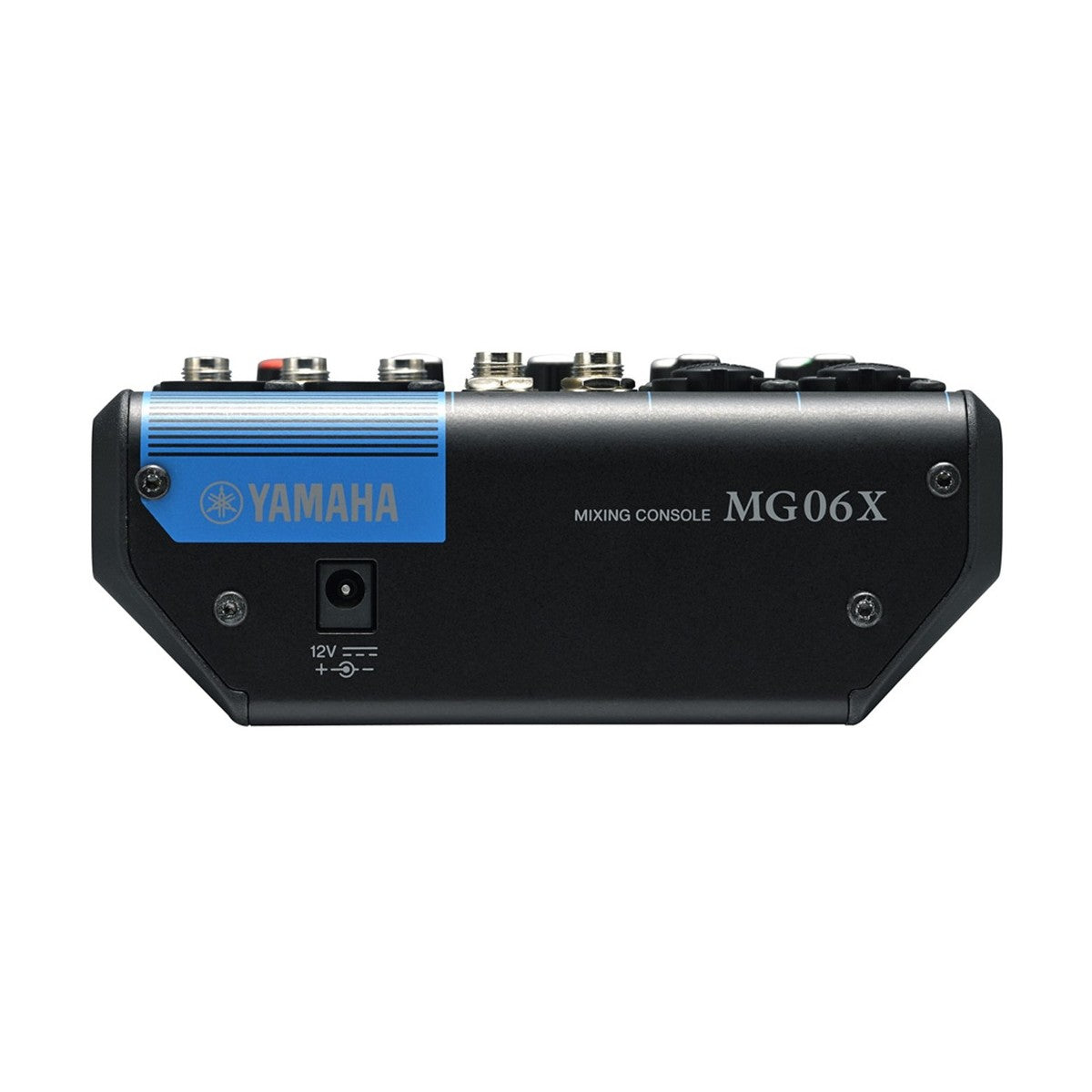

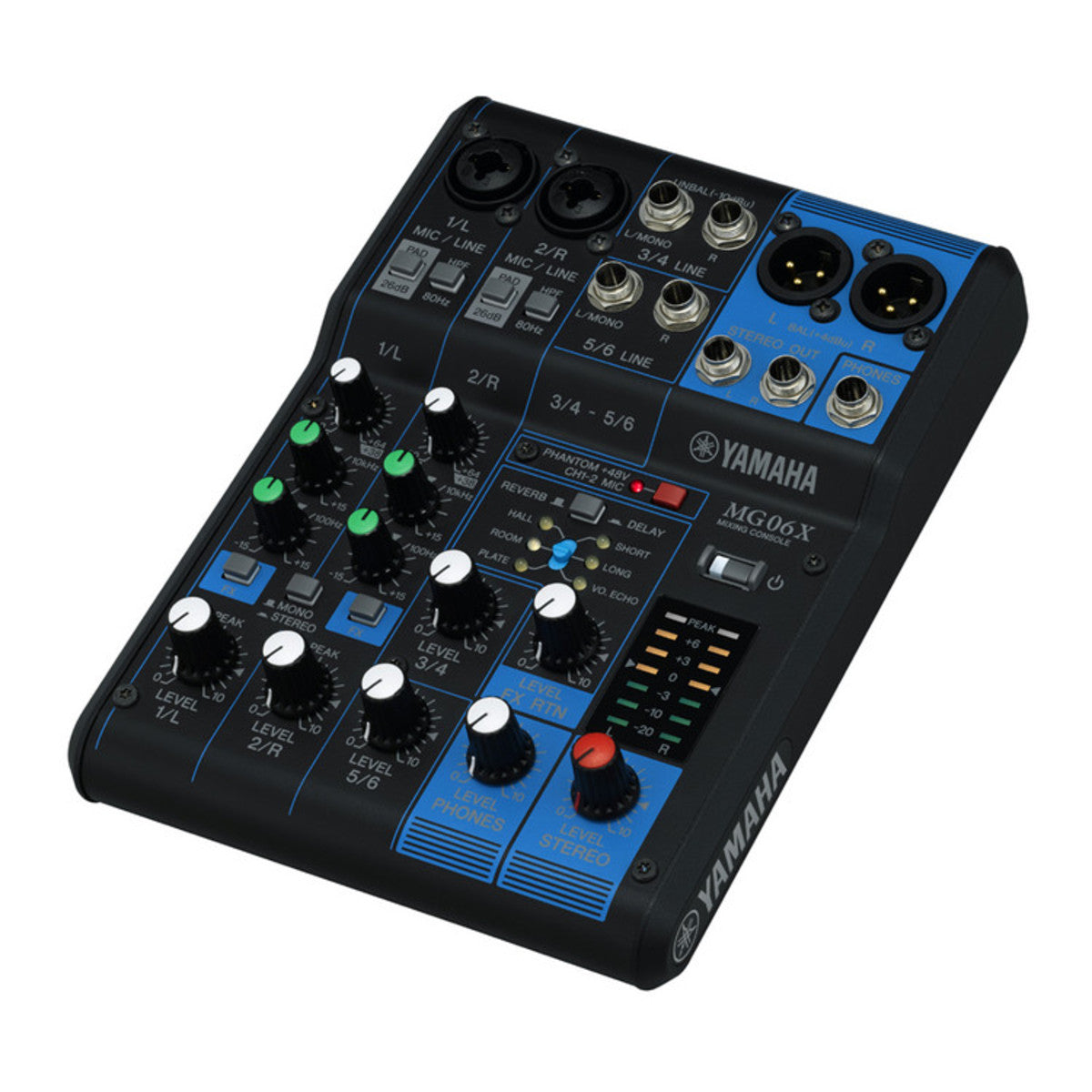

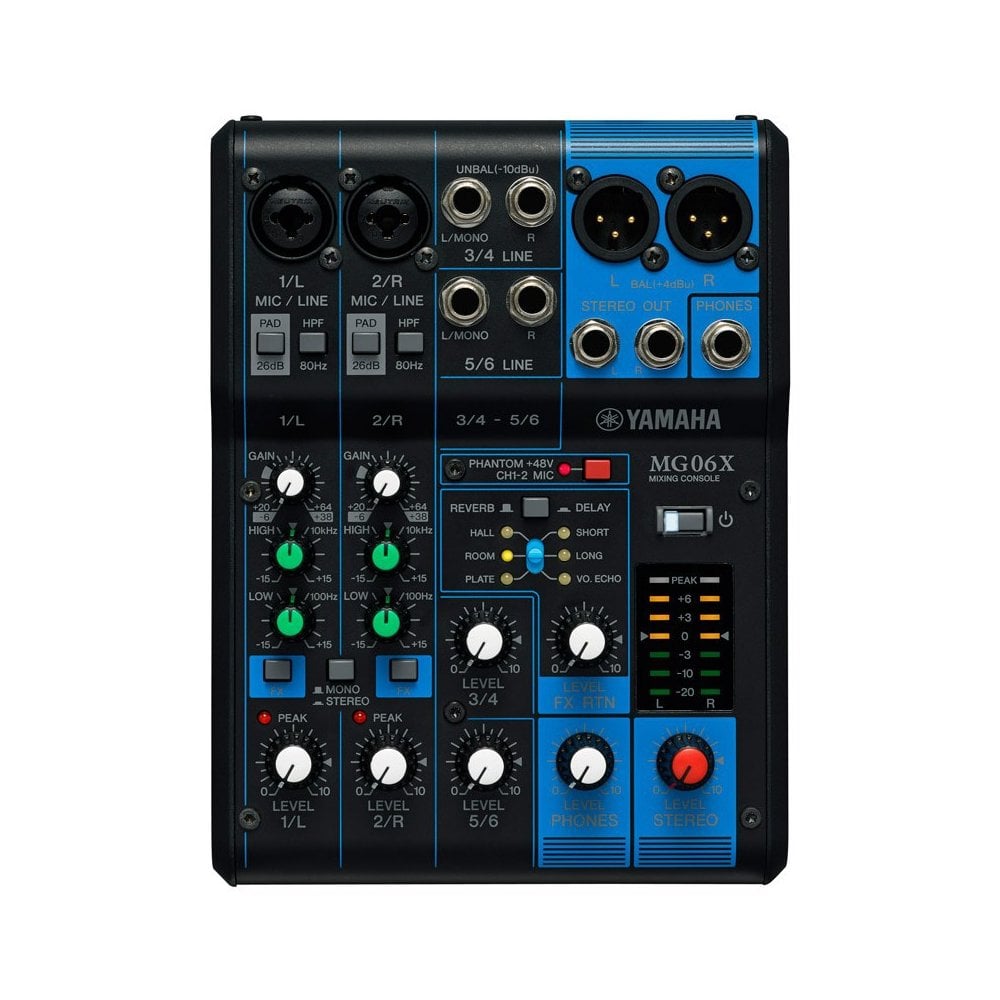

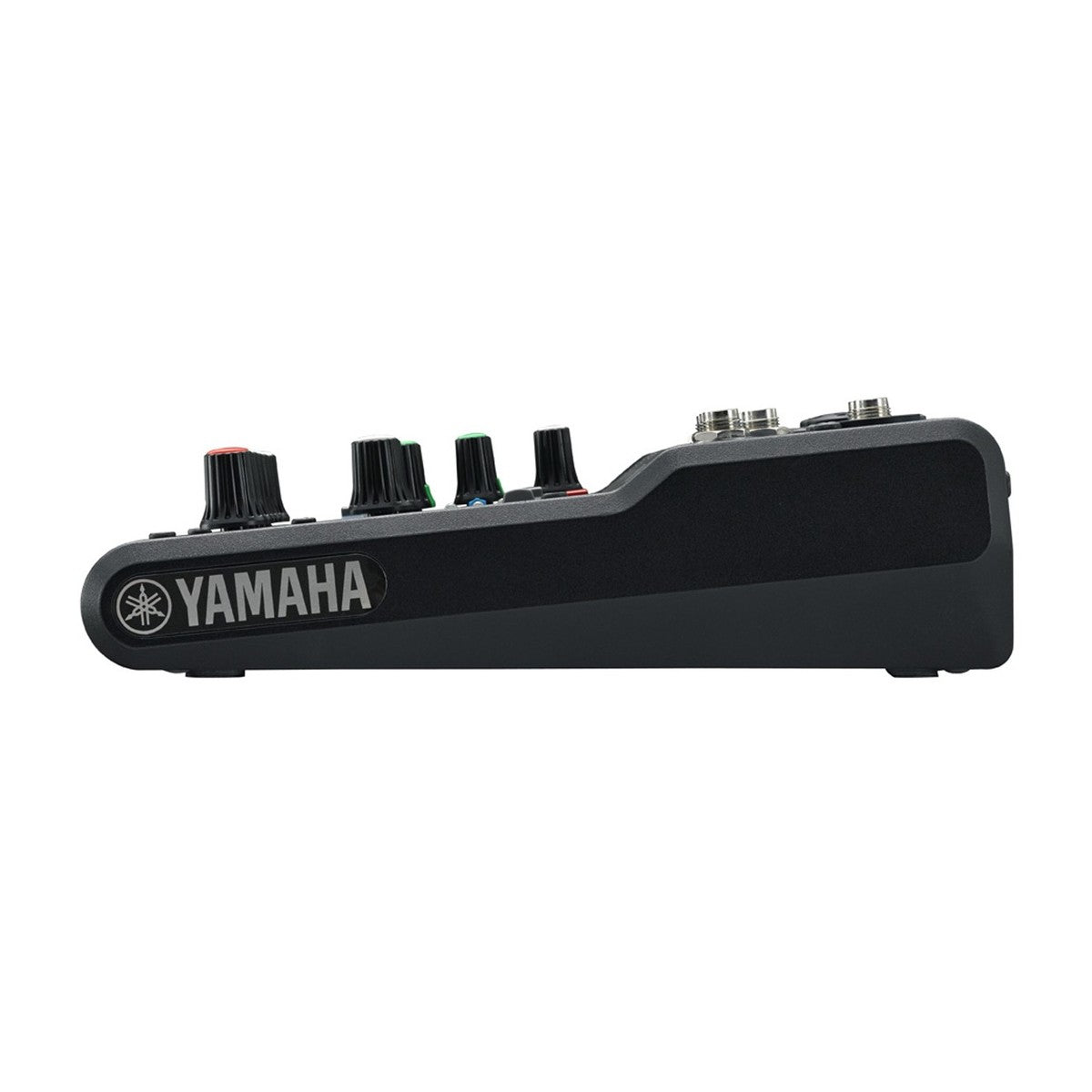

Yamaha MG06X

Completely redesigned for the 3rd Generation of MG mixers, the compact MG06X features 2 class leading Class A D-PRE microphone preamps and a range of Yamaha's acclaimed SPX effects.
6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
1 Stereo Bus
“D-PRE” mic preamps with an inverted Darlington circuit
High-grade effects: SPX with 6 programs
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Metal chassis
Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
Net Weight: 0.9 kg (1.98 lbs.)
Outline

• Mixing capabilityOn-board processorsSPX algorithm: 6 programs
• I/OPhantom power+48 V
• Input Channels
  Mono[MIC/LINE]2
  Stereo[LINE]2
• Output Channels
  STEREO OUT2
  PHONES1
• BusStereo: 1
• Input Channel Function
  PAD26 dB (Mono)
  HPF80 Hz, 12 dB/oct (Mono)
  EQ HIGH(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  EQ LOW(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
  Level Meter2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]

• Total harmonic distortion0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
• Frequency response+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level
  Equivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  Residual output noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk-88 dB
• Power requirementsPA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
• Power consumption12 W
• Dimensions
  W149 mm (5.9")
  H62 mm (2.4")
  D202 mm (7.9")
• Net weight0.9 kg (1.98 lbs.)
• Accessories
  Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications,
  Optional Accessory: Mic Stand Adaptor BMS-10A
• OthersOperating Temperature: 0 to +40ËšC
