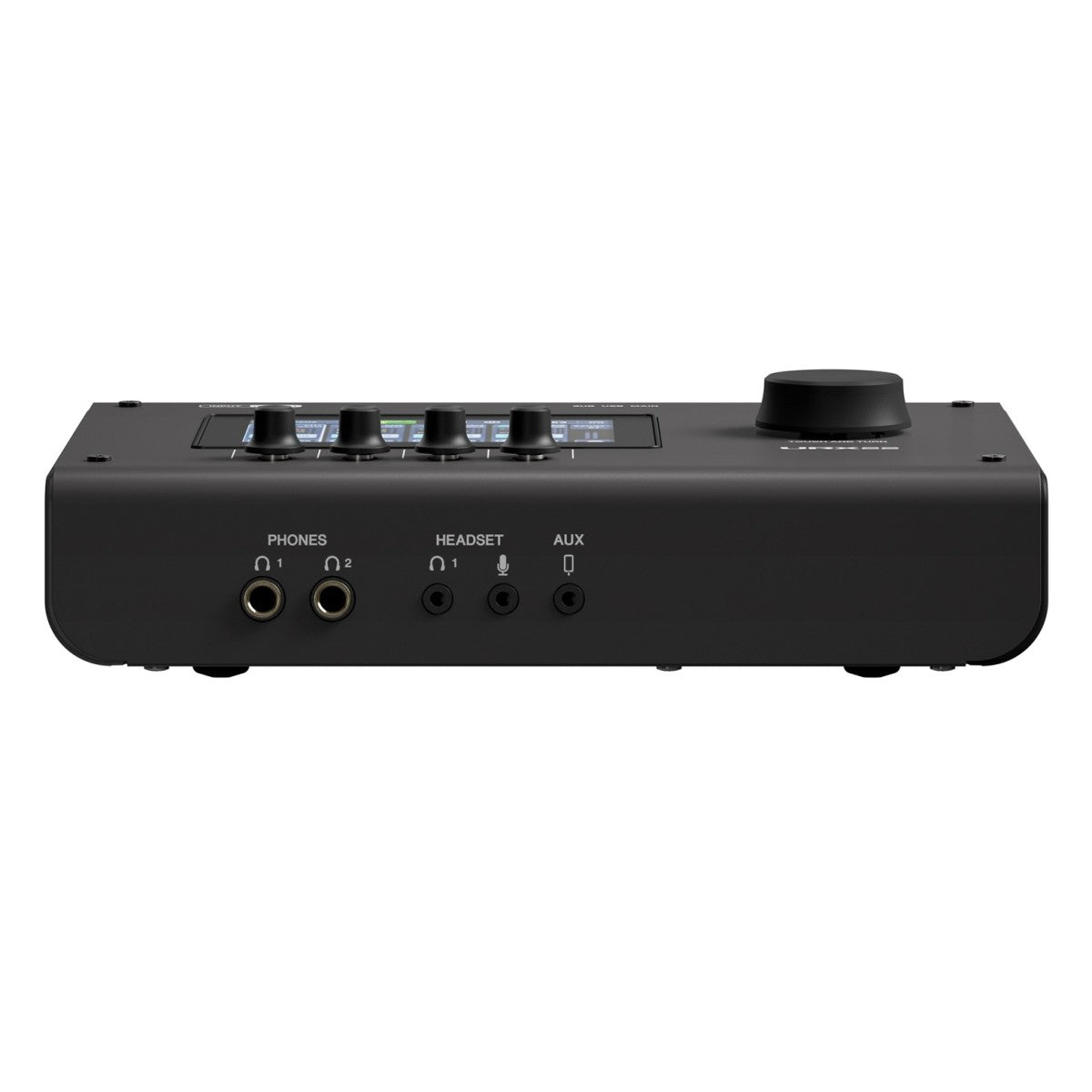

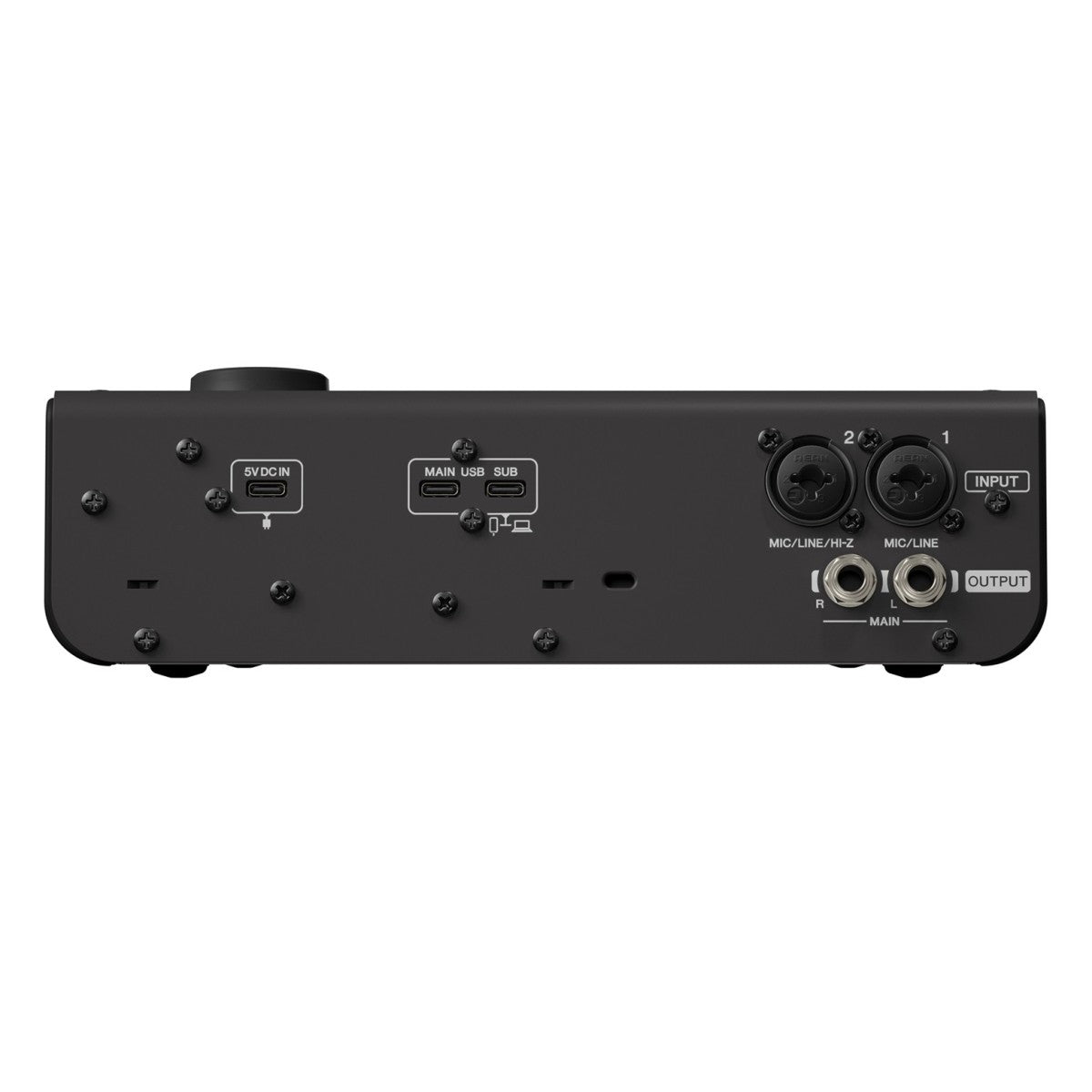

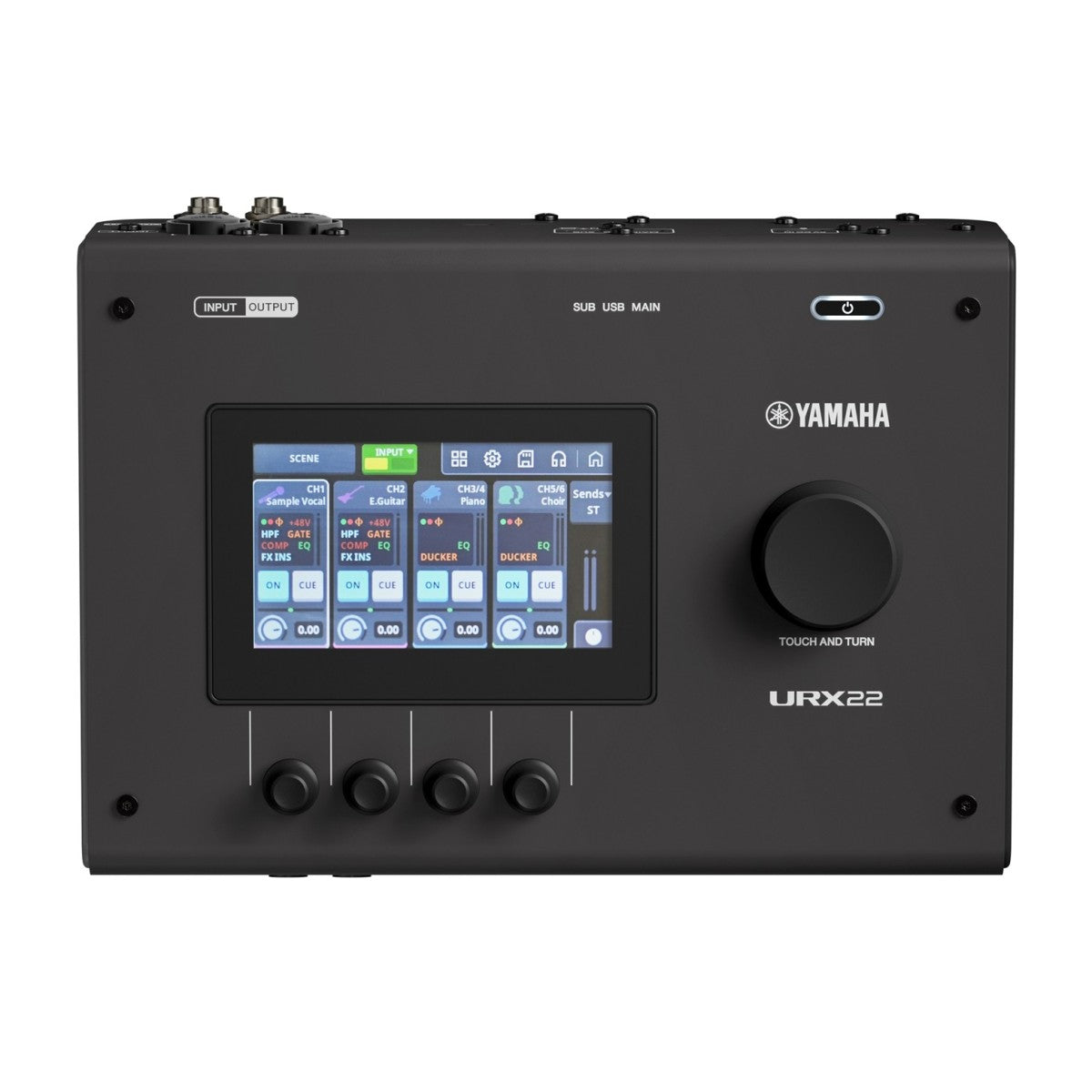

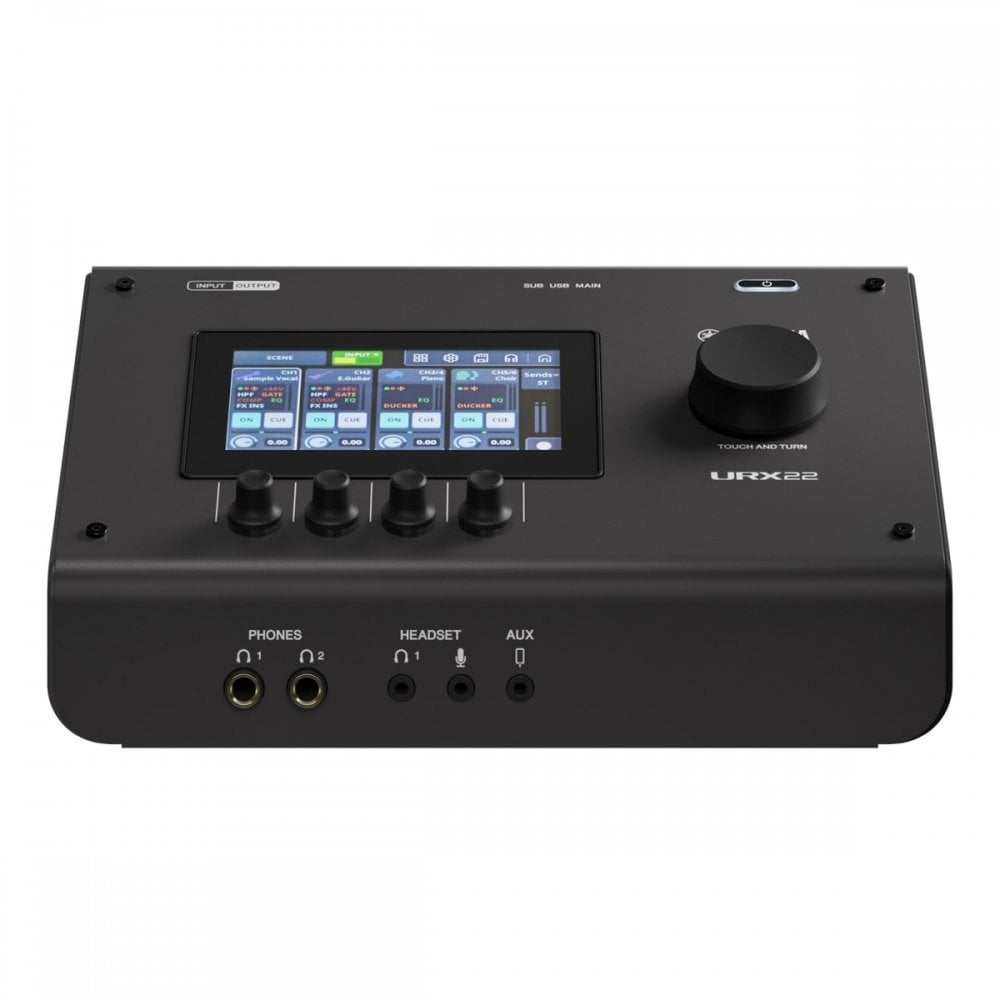

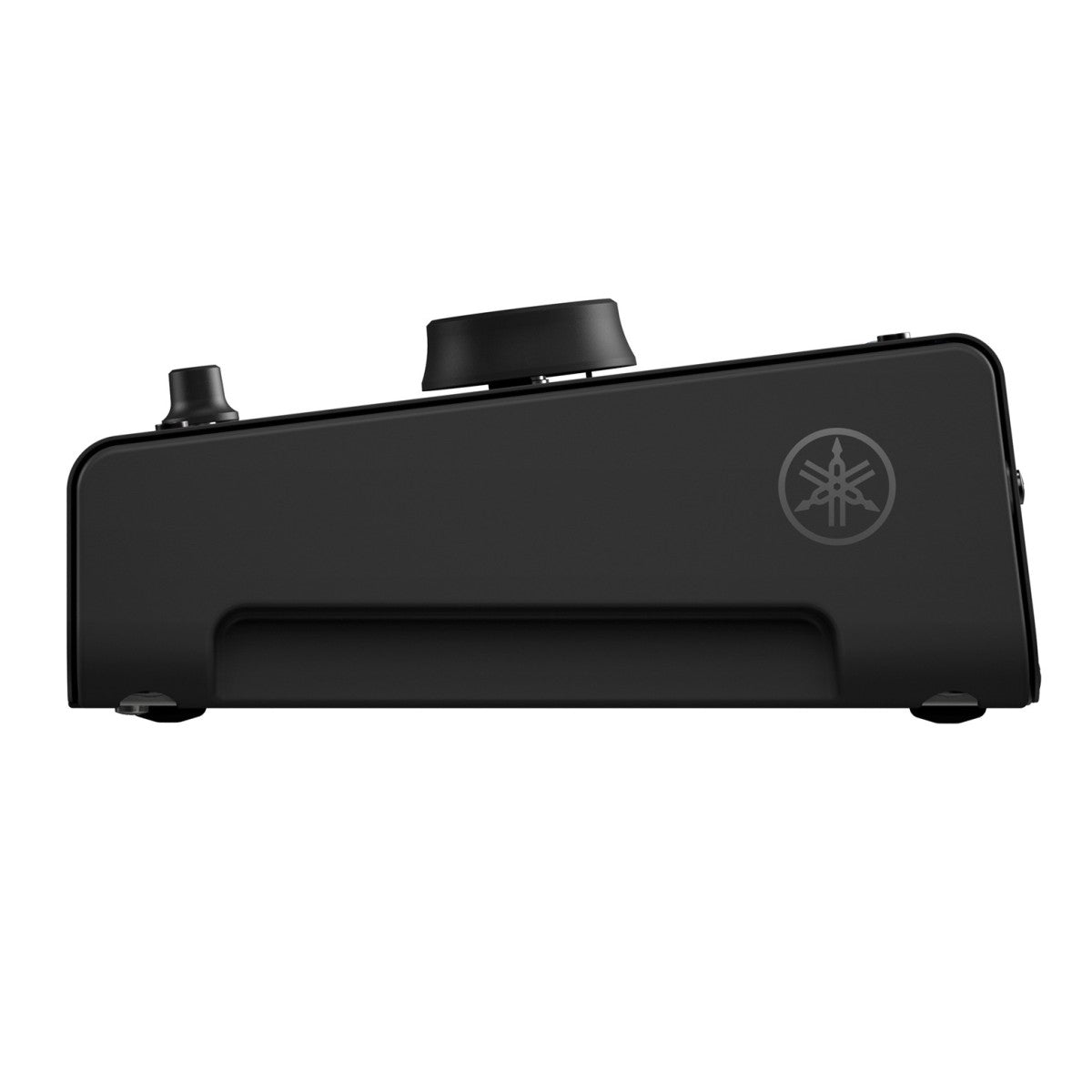

Yamaha URX22 USB Streaming Mixer

Professional sound in a compact streaming mixer

The Yamaha URX22 USB Streaming Mixer delivers pristine audio quality with support for up to 32-bit / 192 kHz resolution and high-end AD/DA conversion. Two microphone preamps with up to 78 dB of gain and +48 V phantom power ensure clean, detailed capture for both dynamic and condenser microphones. A wide dynamic range and ultra-low distortion preserve every nuance of your performance.

Intuitive control with built-in DSP processing

A 4.3-inch touch LCD combined with physical control knobs provides fast, precise operation. The onboard DSP processor enables latency-free monitoring and professional effects including gate, compressor, EQ, reverb, amp simulation, and voice effects. Assistive features such as Auto Gain, Clip Safe, Simple Mode, and Scene Recall help streamline setup and maintain consistent sound quality.

Flexible connectivity for streaming and recording

The URX22 features dual USB MAIN and SUB ports for flexible audio routing with computers, tablets, and external devices. A combination of Mic/Line, Hi-Z, headset, and AUX inputs allows connection of microphones, instruments, and playback sources. Dual headphone outputs enable independent monitoring, making the URX22 well suited to solo creators and collaborative workflows alike.

Features

USB-C audio interface with 32-bit / 192 kHz support

Two microphone preamps with 78 dB gain range and phantom power

Touch LCD interface with physical control knobs

Built-in DSP effects for latency-free monitoring

Dual USB MAIN and SUB connections for flexible routing

Auto Gain and Clip Safe assistive functions

Headset and AUX inputs for streaming setups

Durable metal housing in black finish

Specifications

Type: USB-C audio interface / streaming mixer

Audio resolution: Up to 32-bit / 192 kHz

Analog inputs: 2 combo Mic/Line inputs (1 Mic/Line/Hi-Z, 1 Mic/Line/headset), 1 AUX input (3.5 mm)

Analog outputs: 2 TRS line outputs

Microphone preamps: 2

Gain range: 78 dB

Phantom power: +48 V

Headphone outputs: 2 TRS, 1 headset output

USB connections: 2 x USB Type-C (MAIN and SUB)

Recording channels: 16-track recording / 16-track playback (USB MAIN)

DSP effects: Gate, compressor, EQ, reverb, amp simulator, voice changer, multi-band compressor, delay

Display: 4.3-inch touch LCD

Power requirements: DC 5 V / 3.0 A (USB power)

Power consumption: 15 W

Dimensions (W x H x D): 245 x 78 x 182 mm

Weight: 1.9 kg

Finish: Black

Included accessories: USB-C to USB-C cable, start guide, safety guide, Steinberg software license cards
