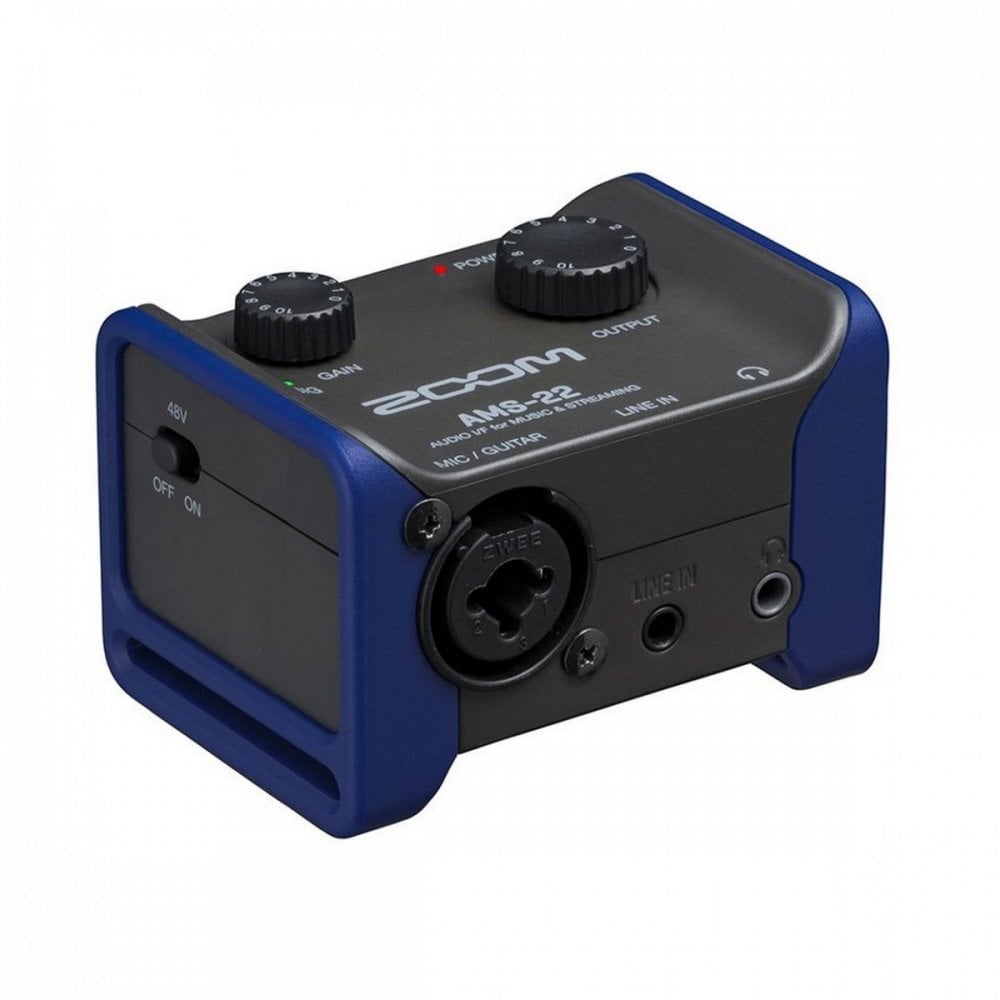

Zoom AMS-22 Audio Interface

Record music/live-stream – anywhere, anytime!

Built for portability, the AMS-22 combines a compact design with versatile functionality providing a 2-in/2-out audio interface for streaming and recording music. At the heart of the AMS-22 is the XLR/TRS combo input which allows you to process both instrument and microphone signals – ideal for vocalists and instrumentalists. There is also a stereo line input as well as a headphone output for monitoring your levels whilst you record. The simple and streamlined design makes it easy to operate with gain and output rotary controls on top of the interface. You can even output to external monitors using the two TRS outputs for added flexibility.

Loopback control – incorporate background music/backing tracks

Standing out from the crowd, the AMS-22 isn’t just your average portable audio interface. It features a special ‘Loopback’ switch that combines input audio with the playback from your computer. This means you can add backing tracks to your live-streaming or use background music and other audio files, as and when you need them. With the AMS-22 providing support for a wide range of devices, you can rest assured you’re always ready to record/stream – no matter where you are.

Direct monitoring and power options

Monitoring your sound as you go can be paramount when it comes to creating a cohesive mix or a professional livestream. The AMS-22 features a ‘Direct Monitor’ switch, allowing you to monitor your sound whilst you record, allowing you to hear how you sound at all times. The AMS-22 can be powered in various ways including USB bus power. You can also power the interface using an AC adapter or a USB battery.

What's Included

• AMS-22 USB Audio Interface
• USB-C Cable
• Quick Tour

Features

• 2-in/2-out music and livestreaming USB audio interface
• XLR/TRS combo input and stereo line input – connect both mics and instruments
• Loopback switch allows you to incorporate background music or backing tracks whilst livestreaming
• Direct monitoring via headphone output
• Provides support for most devices – Mac, PC, iOS and Android
• Multiple power options including USB bus power and AC adapter (not included)

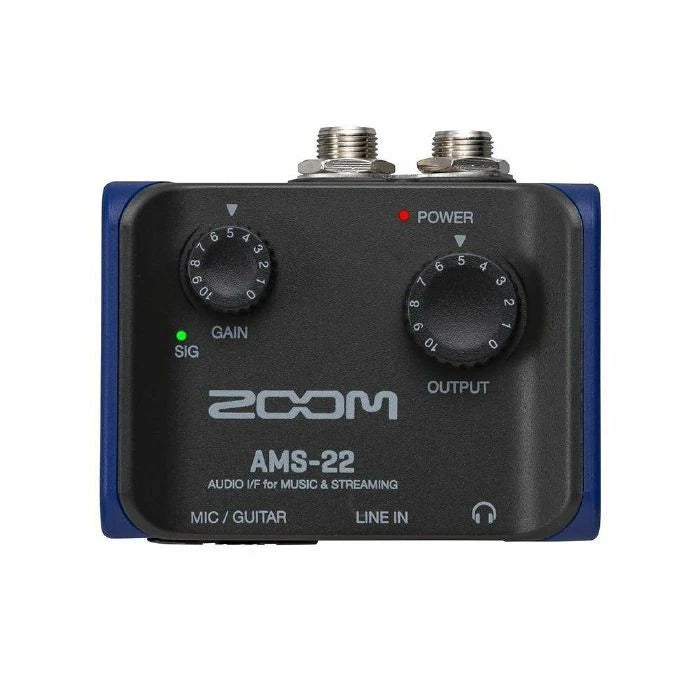

• Rotary controls for Gain and Output levels
• Onboard 48V Phantom power for condenser microphones
• Robust and compact design

Specifications

• Input and Output Channels
• Number of input channels:
• Mono (MIC/GUITAR): 1
• Stereo (LINE IN): 1
• Number of output channels:
• Stereo (TRS): 1
• Stereo (PHONES): 1

Connectors

Mic/guitar:

• Type: XLR/TRS combo jack (XLR: 2 HOT, TRS: TIP HOT)
• Input Gain: +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)

Input impedance:

• XLR: 2 k ohms (MIC)
• TS: 1 M ohms (GUITAR)

Maximum input level:

• XLR: +0.6 dBu (MIC)
• TS: +11 dBu (GUITAR)
• Phantom power: +48 V

Output (standard phone jacks):

• Type: TRS phone jacks (balanced)
• Maximum output level: −2 dBu (at 0 dBFS)
• Output impedance: 100 ohms

Output (Headphone Jack:

• Type: 3.5mm stereo mini jack (20 mW + 20 mW – 32 ohms load)

Output impedance: 10 ohms

• USB: USB Type-C (Use a USB cable that supports data transfer. USB bus power is supported)
• DC 5V: USB Type-C (for power supply)

Line Input:

• Type: 3.5mm stereo mini jack
• Input impedance: 20 k ohms
• Maximum input level: +1.5 dBu
• Frequency Response and Equivalent Input Noise
• 44.1 kHz: +0/−2 dB (20 Hz – 20 kHz)
• 96 kHz: +0/−3 dB (20 Hz – 40 kHz)
• EIN: –120 dBu or less (IHF-A) at +54dB/150 ohms input

Audio Interface

• Input and output channels:
• Recording: 2 channels
• Playback: 2 channels
• Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
• Bit depth: 24-bit
• Interface: USB 2.0
• Class: USB Audio Class 2.0

Power

• Type: AC adapter (ZOOM AD-17): DC 5 V/1A (USB bus power is supported)
• Rated Current: USB bus power / DC 5 V power supply: 170 mA
• Power Consumption: 1.8 W maximum

Physical

• Dimensions (WxDxH): 68 x 57.7 x 46 mm
• Weight: 85 grams
